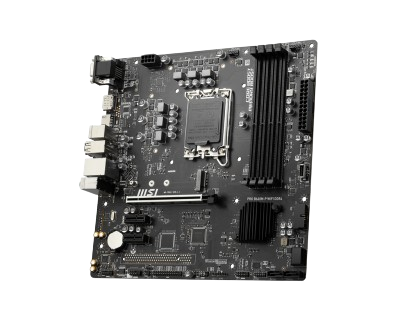

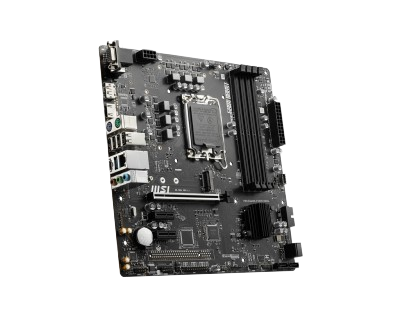

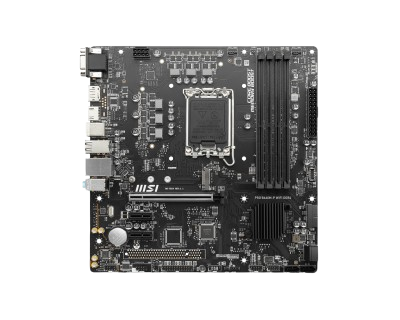

MSI PRO B660M-P WIFI DDR4
₹13,495.25
In Stock
Product Attributes
| Motherboard Chipset Id | 12 |
| Socket Id | 6 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 2 |
| Wifi | N |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 1 |
| Nvme Gen 3 | 0 |
| Nvme Gen 4 | 1 |
| Nvme Gen 5 | 0 |
| Brand | MSI |
Description
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4600+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Wireless and Bluetooth: Intel® Dual Band Wireless-AC 3168, Bluetooth 4.2
Technical Specifications
| CPU | Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1 Processor socket LGA1700 |
| CHIPSET | Intel® B660 chipset |
| MEMORY | 4x DDR4 memory slots, supporting up to 128GB1 Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max over clocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| EXPANSION SLOT | 1x PCIe x16 slot PCI_E1 (From CPU) Supports up to PCIe 4.0 x16 2x PCIe x1 slots PCI_E2 & PCI_E3 (Fom B660 chipset) Supports up to PCIe 3.0 |
| ONBOARD GRAPHICS | 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz1/2 1x Display Port 1.4 port, supporting a maximum resolution of 4K 60Hz1/2 1x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| AUDIO | Relate® ALC897 Codec 7.1-Channel High-Definition Audio |
| LAN | 1x Realtek® RTL8111H 1Gbps LAN controller |
| STORAGE | 4x SATA 6Gb/s ports (From B660 chipset) 1 1x M.2 slot (Key M) M2_1 slot (From B660 Chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| FORM FACTOR | M-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| WI-FI & BLUETOOTH | Intel® Dual Band Wireless-AC 3168 Dual Band 1×1 802.11ac 2.4GHz/ 5GHz bands 433 Mbps Max Speed Bluetooth 4.2 (BR/EDR, BLE) Supports Windows 7/ 8.1/ 10 |
| BIOS FEATURES | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language |
| INTERNAL USB CONNECTORS | 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports |
| FAN CONNECTORS | 1x 4-pin CPU fan connector 1x 4-pin system fan connector |
| SYSTEM CONNECTORS | 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x parallel port connector 1x Serial port |
| POWER CONNECTORS | 1x Clear CMOS jumper |
| LED FEATURE | 4x EZ Debug LED |

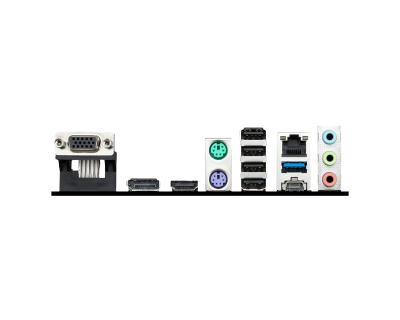

| BACK PANEL CONNECTORS | VGA DisplayPort HDMI Keyboard / Mouse USB 2.0 LAN port Audio connectors USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 1 5Gbps Type-A |
| Warranty | 3 Years |
