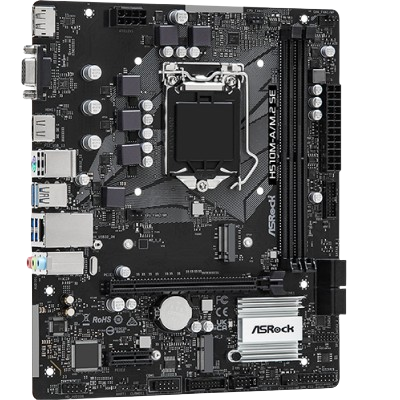

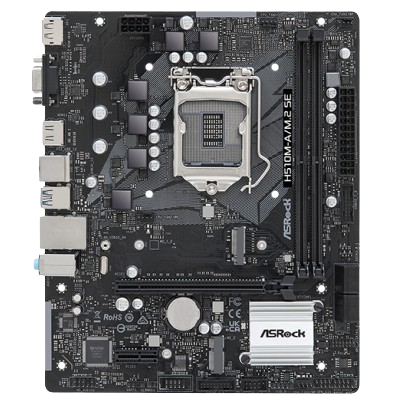

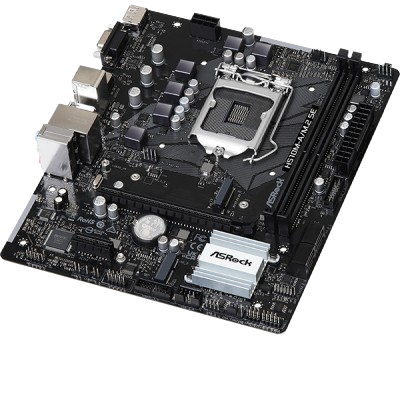

ASRock H510M-A/M.2 SE

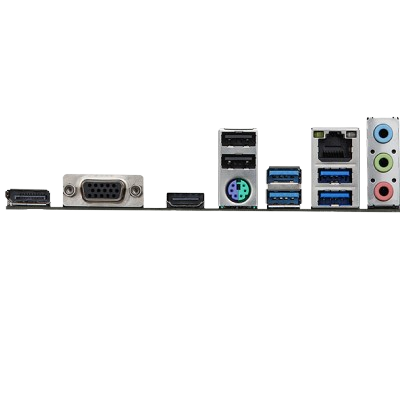

Supports 10th Gen Intel® Core™ Processors (Socket 1200) 2 x DDR4 DIMMs Supports Dual Channel, up to 2933 Intel® H510 Chipset 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi Graphics Output Options : HDMI, D-Sub, DisplayPort 7.1 CH HD Audio (Realtek ALC897 Audio Codec) 4 SATA3, 1 M.2 (PCIe Gen3x4 & SATA3), 8 USB 3.2 Gen1 (4 Front, 4 Rear) 5 USB 2.0 (3 Front, 2 Rear) Gigabit LAN TPM Module onboard Supports ASRock Auto Driver Installer 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. USB3.2 Gen1 Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides USB 3.2 Gen1 ports onboard allows you to have a stunning data transfer experience. Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3) The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
