MSI

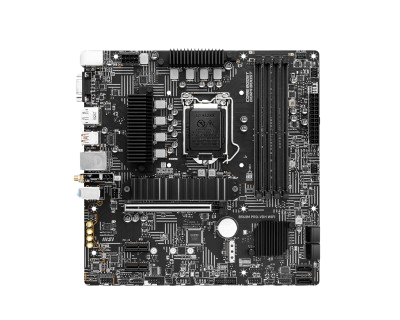

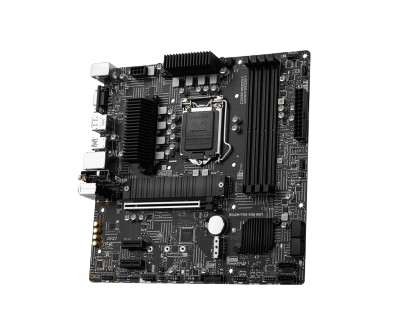

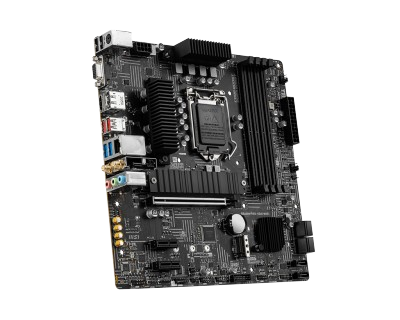

MSI B560M PRO-VDH WIFI
₹11,419.50
In Stock
Product Attributes
| Motherboard Chipset Id | 9 |
| Socket Id | 4 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 2 |
| Wifi | Y |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 2 |
| Nvme Gen 3 | 1 |
| Nvme Gen 4 | 1 |
| Nvme Gen 5 | 0 |
| Brand | MSI |
Description
Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5066(OC) MHz
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Technical Specifications
| CPU (MAX SUPPORT) | i9 |
| SOCKET | Lga 1200 |
| CHIPSET | Intel® B560 Chipset |
| DDR4 MEMORY | 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 1 |
| PCI-E GEN | Gen4 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 SLOT | 2 |
| TPM (HEADER) | 1 |
| LAN | 1x Realtek® 8125B 2.5Gbps LAN controller |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6 AX201, Bluetooth 5.1 |
| USB 3.2 PORTS (FRONT) | 2(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 2(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| SERIAL PORTS(FRONT) | 1 |
| AUDIO PORTS (REAR) | Realtek® ALC897 Codec |
| DISPLAYPORT | 1 |
| VGA | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| FORM FACTOR | M-ATX |
| WARRANTY | 3 Years |
