MSI

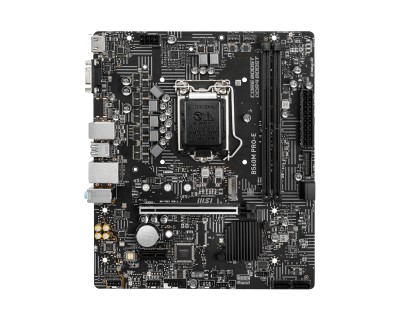

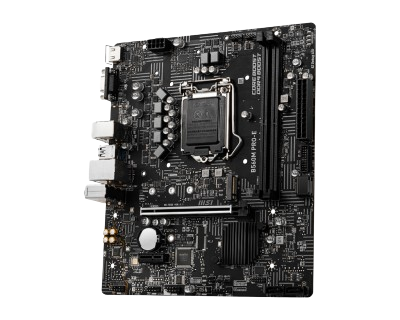

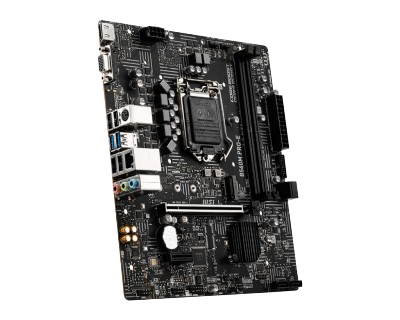

MSI B560M PRO-E
₹8,912.50
In Stock
Product Attributes
| Motherboard Chipset Id | 9 |
| Socket Id | 4 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 2 |
| Wifi | N |
| Pci Express | No |
| Ram Slots | 2 |
| Total Nvme Slots | 1 |
| Nvme Gen 3 | 1 |
| Nvme Gen 4 | 0 |
| Nvme Gen 5 | 0 |
| Brand | MSI |
Description
Supports 10th Gen Intel® Core™ , 11th Gen Intel® Core™ , Pentium® Gold and Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 4800(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability.
Lightning Fast Experience : PCIe 4.0
Turbo M.2 : Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Audio Boost : Reward your ears with studio grade sound quality
Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.
Technical Specifications
| CPU | Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core ™ Prcessors, Pentium® Gold and Celeron® Processors1 Processor socket LGA1200 Please go to intel.com for compatibility information. |
| CHIPSET | Intel® B560 chipset |
| MEMORY | 2x DDR4 memory slots, support up to 64GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800 MHz 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer to www.msi.com for more information on compatible memory |
| EXPANSION SLOT | 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 1x PCIe 3.0 x1 slot (From PCH) |
| ONBOARD GRAPHICS | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12 1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz1 Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed. |
| AUDIO | Realtek® ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Intel® I219V 1Gbps LAN controller |
| STORAGE | Intel® B560 Chipset 4x SATA 6Gb/s ports (From B560 Chipset) 1x M.2 slot (Key M) M2_1 slot (From B560 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s1 Supports 2242/ 2260/ 2280 storage devices SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| USB | Intel® B560 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors) |
| BIOS FEATURES | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
| INTERNAL CONNECTORS | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector |

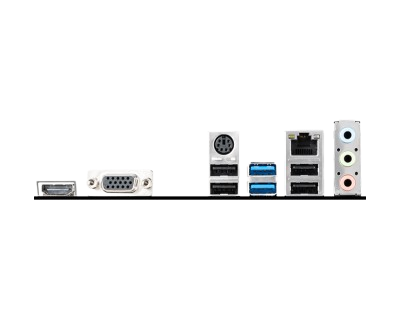

| BACK PANEL CONNECTORS | HDMI VGA Mouse / Keyboard LAN port Audio connector USB 2.0 USB 3.2 Gen 1 5Gbps Type-A USB 2.0 |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| FORM FACTOR | MATX |
| Warranty | 3 Years |
