MSI

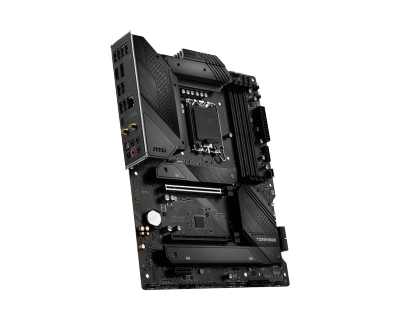

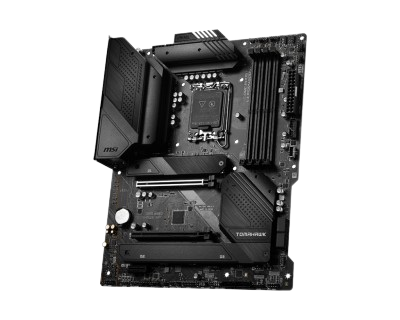

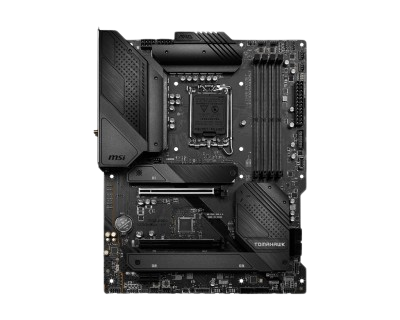

MSI MAG B660 TOMAHAWK WIFI
₹25,521.95
In Stock
Product Attributes
| Motherboard Chipset Id | 12 |
| Socket Id | 6 |
| Ram Type Id | 3 |
| Motherboard Factors Id | 3 |
| Wifi | Y |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 2 |
| Nvme Gen 3 | 0 |
| Nvme Gen 4 | 2 |
| Nvme Gen 5 | 0 |
| Brand | MSI |
Description
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, up to 6200+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
Technical Specifications
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1700 |
| CHIPSET | Intel® B660 Chipset |
| DDR5 MEMORY | 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E X1 | 1 |
| SATAIII | 6 |
| M.2 SLOT | 3 |
| RAID | 0/1/5/10 |
| LAN | 1x Realtek® 8125BG 2.5G LAN |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E module |
| USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 1(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 4(Gen 2, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 4 |
| AUDIO PORTS (REAR) | Realtek® ALC1220P Codec |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | ATX |
| WARRANTY | 3 Years |
