MSI

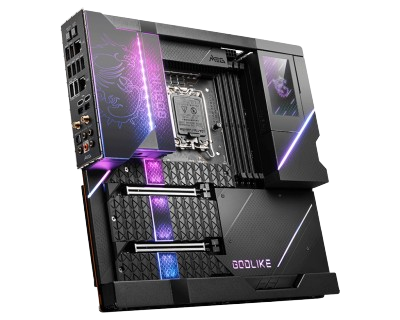

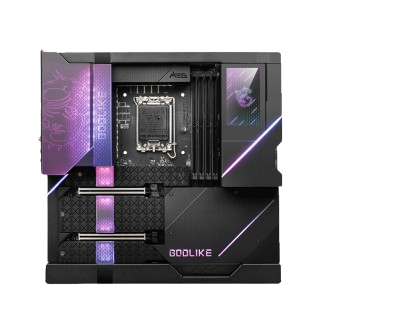

MSI MEG Z690 GODLIKE
₹220,865.55
In Stock
Product Attributes
| Motherboard Chipset Id | 14 |
| Socket Id | 6 |
| Ram Type Id | 3 |
| Motherboard Factors Id | 4 |
| Wifi | Y |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 6 |
| Nvme Gen 3 | 1 |
| Nvme Gen 4 | 4 |
| Nvme Gen 5 | 1 |
| Brand | MSI |
Description
Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
M-Vision Dashboard: Industry's first built-in touchable LCD on the motherboard, not only indicates the status of your gaming rig, but also allows system tuning with touch control.
Extreme Power Design: Direct 20+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the maximum performance.
Premium Thermal Module: Wavy fin design, Cross Heat-pipe, 7W/mK thermal pads, and Double-Sided M.2 Shield Frozr ensure the extreme performance with low temperature.
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Sextuple M.2 Connectors: Onboard 6x M.2 connectors for the maximum storage performance with one Lightning Gen 5 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and latest Wi-Fi 6E solution deliver the best online experience without lag.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G.
8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Full Armor Design: The revolutionary magnetic cover and Chest Plate allow you showing off your PC building without messy cable when installing great amount of devices.
Technical Specifications
| PROCESSOR | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1 Processor socket LGA1700 |
| CHIPSET | Intel® Z690 Chipset |
| MEMORY | 4x DDR5 memory slots, supporting up to 128GB 1 Supports 1R 5600 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, unbuffered memory |
| EXPANSION SLOTS | 3x PCIe x16 slots Supports x16/x0/x4, x8/x8/x4 PCI_E1 supports PCIe 5.0 x16 (From CPU) 1 PCI_E2 supports PCIe 5.0 x8 (From CPU)2 PCI_E3 supports PCIe 4.0 x4 (From Z690 chipset)2 |
| MULTI-GPU | Supports AMD® CrossFire™ Technology Supports NVIDIA® SLI™ Technology |
| THUNDERBOLT 4 | Intel®JHL8540 Thunderbolt™ 4 Controller 2x Thunderbolt™ 4 (USB-C) ports on the back panel Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A ,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) |
| STORAGE | 6x SATA 6Gb/s ports (From Z690 chipset) SATA5~8 (From Z690 chipset) SATAA~B (From ASM1061) 6x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From CPU) 2 Supports up to PCIe 5.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_4 slot (From Z690 chipset) 3 Supports up to PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_5 slot (From Z690 chipset) 1 Supports up to PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_6 slot (From Z690 chipset) Supports up to PCIe 3.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2, M2_4, M2_5 and M2_6 slots support Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1 Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB | Intel® Z690 Chipset 2x USB 3.2 Gen 2×2 20Gbps Type-C internal connectors 4x USB 3.2 Gen 2 10Gbps ports on the back panel Hub-GL3590 4x USB 3.2 Gen 2 10Gbps ports on the back panel ASM1074 4x USB 3.2 Gen 1 5Gbps ports through internal USB connectors Hub-GL850G 4x USB 2.0 ports through internal USB connectors |
| AUDIO | Realtek® ALC4082 Codec + ES9218PQ Combo DAC/HPA 7.1-Channel High-Definition Audio Supports S/PDIF output |
| LAN | 1x Aquantia® AQC113CS 10Gbps LAN controller 1x Intel® I225-V 2.5Gbps LAN controller |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 2, FIPS, FISMA |
| INTERNAL CONNECTORS | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 6x M.2 slots (M-Key) 2x USB 3.2 Gen 2×2 20Gbps Type-C ports 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x Water Flow meter connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connectors 1xTPM module connector 1x Tuning Controller connector |
| LED FEATURE | 1x 2-Digit Debug Code LED 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector |

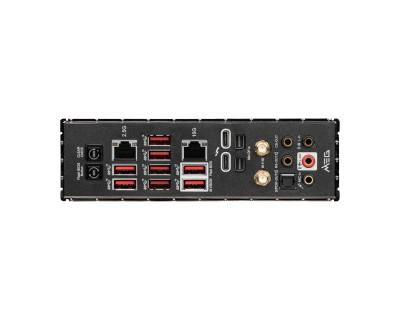

| BACK PANEL PORTS | Clear CMOS Button 2.5G LAN 10G Super LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button USB 3.2 Gen2 10Gbps (Type-A) M-VISION Dashboard Port Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out |
| DIMENSIONS | 12 in. x 12 in. (30.5 cm x 31.0 cm) E-ATX Form Factor |
| Warranty | 3 Years |
