MSI

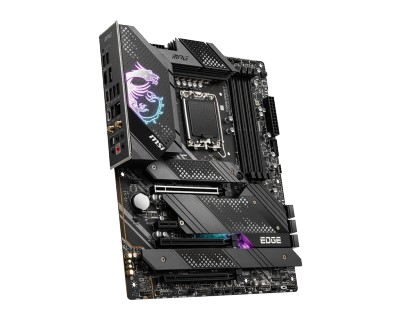

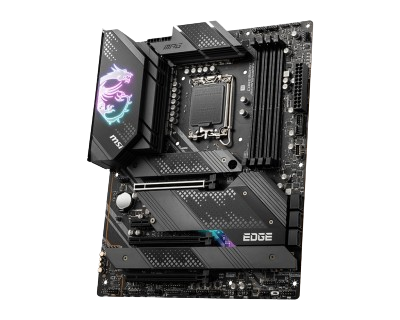

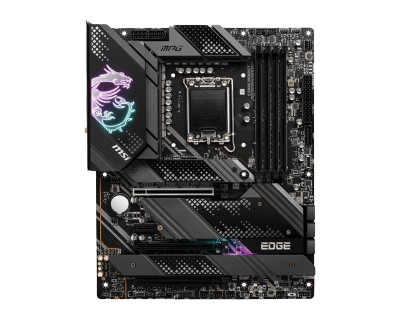

MSI MPG Z690 EDGE WIFI DDR4
₹31,447.90
In Stock
Product Attributes
| Motherboard Chipset Id | 14 |
| Socket Id | 6 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 3 |
| Wifi | Y |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 4 |
| Nvme Gen 3 | 0 |
| Nvme Gen 4 | 4 |
| Nvme Gen 5 | 0 |
| Brand | MSI |
Description
Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 5200+(OC) MHz
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Enhanced Power Design: Direct 16+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Aluminum cover with heatsink, heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB and RAINBOW(ARGB) LED strips and Ambient devices.
2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Technical Specifications
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1700 |
| CHIPSET | Intel® Z690 Chipset |
| DDR4 MEMORY | 5200(OC) / 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 3 |
| PCI-E X1 | 1 |
| SATAIII | 6 |
| M.2 SLOT | 4 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel® I225-V 2.5G LAN |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6 module |
| USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 2(Gen 1, Type A) |

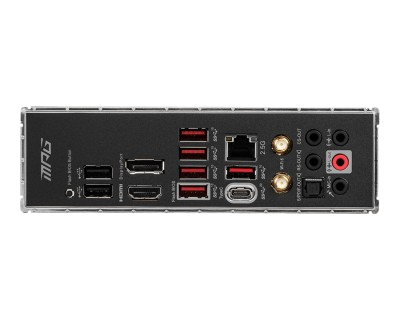

| USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 5(Gen 2, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| AUDIO PORTS (REAR) | 5+ Optical S/PDIF (Realtek® ALC4080 Codec) |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | ATX |
| Warranty | 3 Years |
