MSI

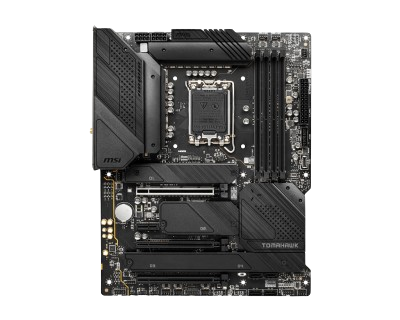

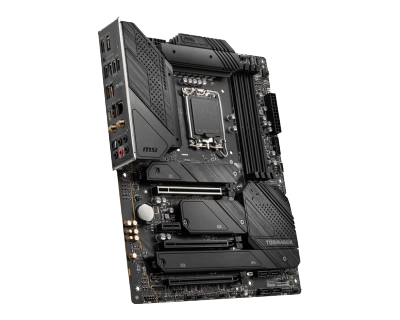

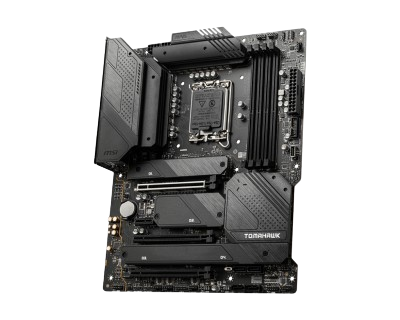

MSI MAG Z690 TOMAHAWK WIFI DDR4
₹26,417.80
In Stock
Product Attributes
| Motherboard Chipset Id | 14 |
| Socket Id | 6 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 3 |
| Wifi | Y |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 4 |
| Nvme Gen 3 | 1 |
| Nvme Gen 4 | 3 |
| Nvme Gen 5 | 0 |
| Brand | MSI |
Description
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 5200(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
Technical Specifications
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1700 |
| CHIPSET | Intel® Z690 Chipset |
| DDR4 MEMORY | 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC) / 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC) / 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 3 |
| PCI-E X1 | 1 |
| SATAIII | 6 |
| M.2 SLOT | 4 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel® I225-V 2.5G LAN |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6 module |
| USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 2(Gen 1, Type A) |

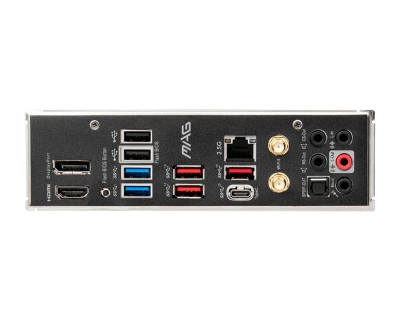

| USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| AUDIO PORTS (REAR) | 5+ Optical S/PDIF (Realtek® ALC4080 Codec) |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | ATX |
| DIMENSION | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Warranty | 3 Years |
