MSI

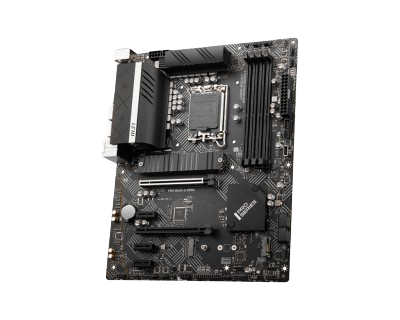

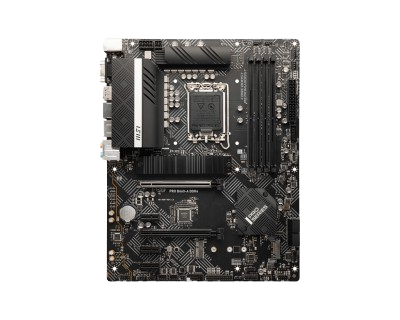

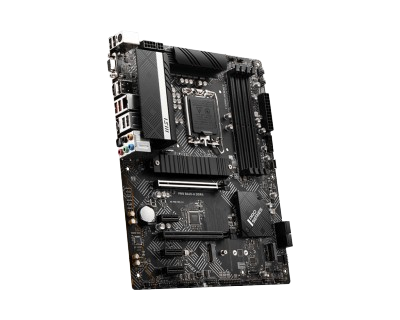

MSI PRO B660-A DDR4
₹15,917.15
In Stock
Product Attributes
| Motherboard Chipset Id | 12 |
| Socket Id | 6 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 3 |
| Wifi | N |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 2 |
| Nvme Gen 3 | 0 |
| Nvme Gen 4 | 2 |
| Nvme Gen 5 | 0 |
| Brand | MSI |
Description
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4800+(OC) MHz
Lightning Fast Experience: PCIe 4.0 slots, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Turbo USB 3.2 Gen 2: Powered by USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
High Quality PCB: 6-layer PCB made by 2oz thickened copper level material
Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
Audio Boost: Reward your ears with studio grade sound quality
Technical Specifications
| Processor | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 |
| Chipset | Intel® B660 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, unbuffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slot | 2x PCIe x16 slots PCI_E1 (from CPU) Support PCIe 4.0 x16 PCI_E3 (From B660 chipset) Support PCIe 3.0 x4 3x PCIe x1 slots (From B660 chipset) 1x M.2 slot with E-key for PCIe Wi-Fi module only (M2_3) |
| Onboard Graphics | 1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Multi-GPU | Supports AMD® CrossFire™ Technology |
| SATA Ports | 4x SATA 6Gb/s ports (From B660 chipset) |
| M.2 SSD Slot | 2x M.2 slots (Key M) M2_1 slot (from CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From B660 chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Support Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors Support Intel® Smart Response Technology for Intel Core™ processors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Realtek® ALC897 Codec 7.1-Channel High-Definition Audio |
| LAN | 1x Intel® 8125BG 2.5SGbps LAN controller |
| Power Connectors | 1x 24-pin ATX main power connector 1x 8+1x 4-pin ATX 12V power connectors |
| Internal USB Connectors | 1x USB 3.2 Gen 1 5Gbps Type-C port (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 connector (From USB Hub GL850G) Supports additional 2 USB 2.0 ports |
| Fan Connectors | 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors |
| System Connectors | 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3) |
| Jumpers | 1x Clear CMOS jumper |
| LED Feature | 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |

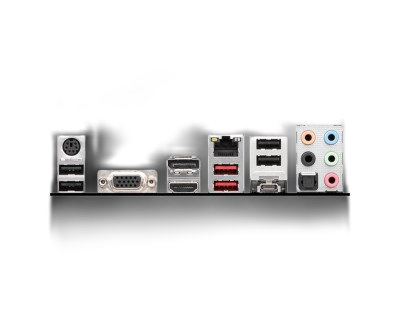

| Back panel ports | Keyboard / Mouse DisplayPort 2.5G LAN USB 2.0 Audio Connectors USB 2.0 VGA HDMI USB 3.2 Gen2 10Gbps (Type-A) USB 3.2 Gen2 10Gbps (Type-C) Optical S/PDIF Out |
| I/O Controller | NUVOTON NCT6687-R Controller Chip |
| Hardware Monitor | CPU/ System/ Chipset temperature detection CPU/ System/ Pump fan speed detection CPU/ System/ Pump fan speed control |
| Dimensions | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Warranty | 3 Years |
