MSI

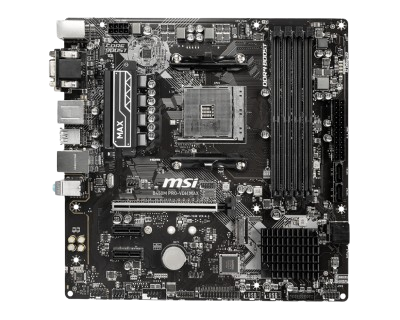

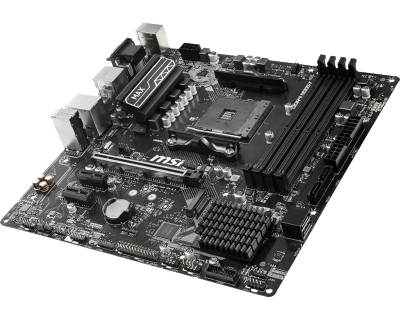

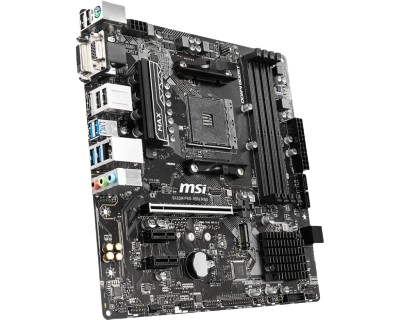

MSI B450M PRO-VDH MAX M-ATX
₹7,358.85
In Stock
Product Attributes
| Motherboard Chipset Id | 3 |
| Socket Id | 2 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 2 |
| Wifi | N |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 1 |
| Nvme Gen 3 | 1 |
| Nvme Gen 4 | 0 |
| Nvme Gen 5 | 0 |
| Brand | MSI |
Description
AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Audio Boost, Turbo M.2
Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Supports DDR4 Memory, up to 3466+(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
Audio Boost: Reward your ears with studio grade sound quality.
EZ Debug LED: Easiest way to troubleshoot
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
PCI-E Steel Armor: Protecting VGA cards against bending and EMI.
Technical Specifications
| Processor | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD® B450 Chipset |
| Memory | 4 x DDR4 memory slots, support up to 64GBSupports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9)Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE) For AMD Other ProcessorsSupports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) Supports Dual Channel mode Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory Please refer www.msi.com for more information on compatible memory. |
| Slots | 1 x PCIe 3.0 x16 slot1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode Athlon™ with Radeon™ Vega Graphics support x4 mode 2 x PCIe 2.0 x1 slots |
| Onboard Graphics | 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors Maximum shared memory of 2048 MB |
| Storage | AMD® B450 Chipset 4 x SATA 6Gb/s portsSupports RAID 0, RAID1 and RAID 10 1 x M.2 slot (Key M)Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices |
| USB | AMD® B450 Chipset 2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors) AMD® processor 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| Audio | Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x Realtek® 8111H Gigabit LAN controller |
| Internal connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x Parallel port connector 1 x RGB LED strip connector 1 x Clear CMOS jumper |

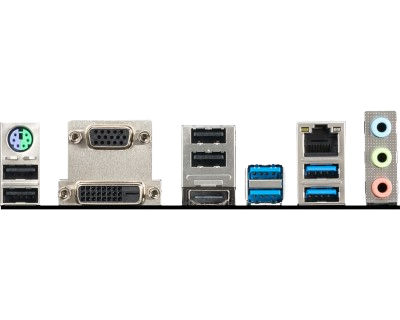

| Back panel ports | PS/2 VGA Port USB 2.0 Port USB 3.2 Gen1 LAN Port HD Audio Connectors DVI-D Port HDMI Port |
| Dimensions | 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) m-ATX Form Factor |
| Mounting | 8 mounting holes |
| Operating System | Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| Warranty | 3 Years |
