DEEPCOOL

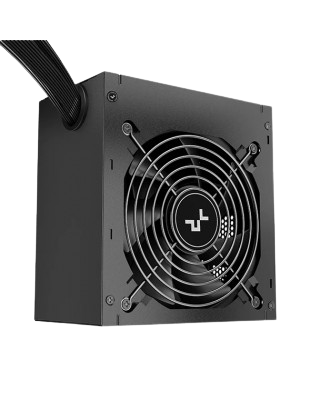

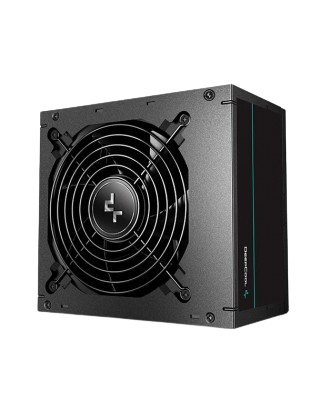

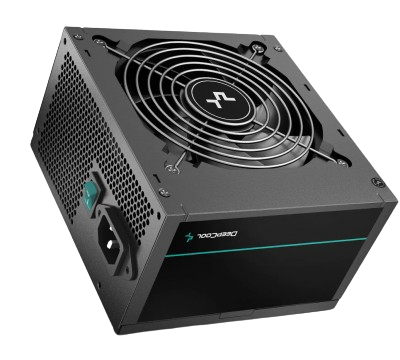

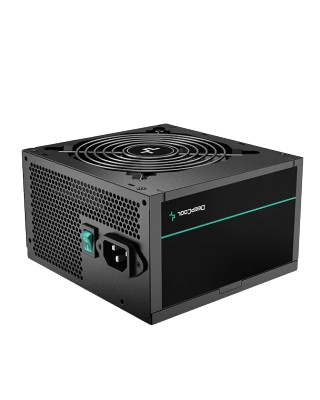

DEEPCOOL PM850D 80 PLUS GOLD
₹8,998.75
In Stock
Product Attributes
| Smps Wattage Id | 4 |
| Smps Type Id | 2 |
| Color Id | 4 |
| Smps Modular | non_modular |
| Brand | DEEPCOOL |
Description
DeepCool PM850D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.
Technical Specifications
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | GOLD |
| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(75% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP |
| Operation Temperature | 0-40°C |
| Regulatory | TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS/RCM/CAN ICES-003(B)/NMB-003(B) |
| Erp Regulation | ErP(2014) |
| MTBF | 100,000 Hours |
| EAN P/N | 6933412701620 R-PM850D-FA0B-AU 6933412701637 R-PM850D-FA0B-CN 6933412701644 R-PM850D-FA0B-EU 6933412701651 R-PM850D-FA0B-JP 6933412701668 R-PM850D-FA0B-UK 6933412701675 R-PM850D-FA0B-US 6933412701682 R-PM850D-FA0B-WO 6933412711216 R-PM850D-FA0B-AR 6933412711223 R-PM850D-FA0B-BR 6933412711230 R-PM850D-FA0B-BU |
