MSI MEG Ai1300P PCIE5 FULL MODULAR ATX3.0
₹34,488.50
In Stock
Product Attributes
| Smps Wattage Id | 10 |
| Smps Type Id | 5 |
| Color Id | 4 |
| Smps Modular | fully_modular |
| Brand | MSI |
Description
Supports Nvidia® GeForce RTXTM 40 Series graphics cards
ATX 3.0 fully supported
PCIe 5.0 ready, with native 16 pin connector
Software sync with MSI center
Full modular design
Sleeve cables
80 PLUS Platinum certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design
Technical Specifications
| Efficiency Rating | 80 PLUS Platinum (up to 92%) |
| Modular | Yes (full modular) |
| Fan Size | 120 mm |
| Fan Bearing | Hydro Dynamic Bearing |
| Dimensions (DxWxH) | 160 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240~ |
| Power Watt | 1300W |
| Power Excursion | 2600W (*up to 200% of the PSU's rated power for 100μs) |
| Input Frequency Range | 50~60 Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |

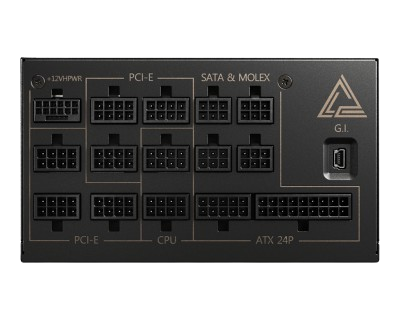

| ATX (24 pin) | 1 |
| EPS (8 pin) | 1 |
| EPS (4+4 pin) | 1 |
| PCI-E 5.0 (16 pin) | 1 (600W) |
| PCI-E (6+2 pin) | 8 |
| SATA (15 pin) | 16 |
| MOLEX (4 pin) | 4 |
| FDD (4 pin) | 1 |
