Asus

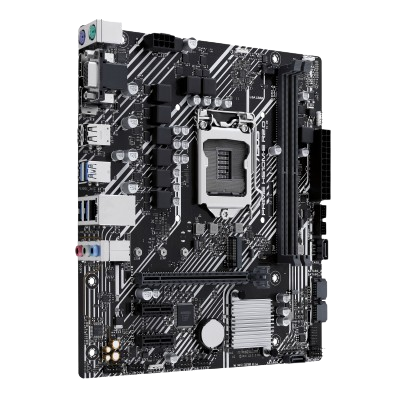

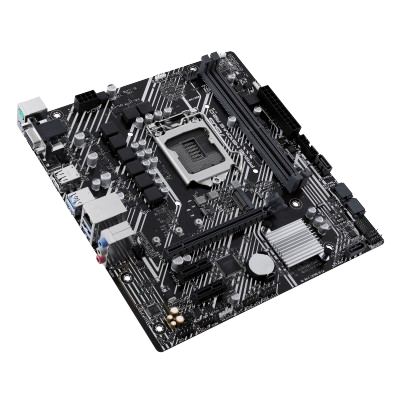

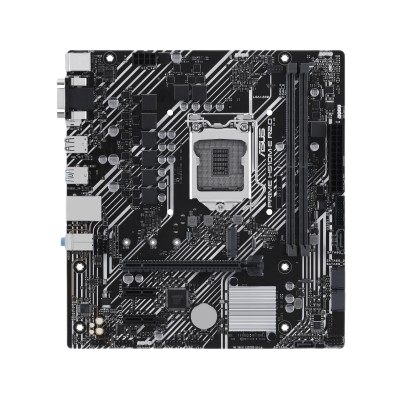

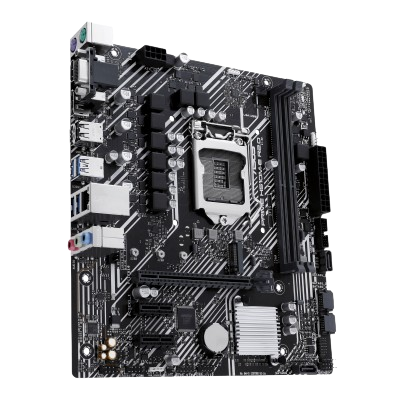

ASUS PRIME H510M-E R2.0
₹7,015.00
In Stock
Product Attributes
| Motherboard Chipset Id | 8 |
| Socket Id | 4 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 2 |
| Wifi | N |
| Pci Express | No |
| Ram Slots | 2 |
| Total Nvme Slots | 1 |
| Nvme Gen 3 | 1 |
| Nvme Gen 4 | 0 |
| Nvme Gen 5 | 0 |
| Brand | Asus |
Description
Intel® H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, DisplayPort/
HDMI™/VGA, USB 3.2 Gen 1 ports, SATA 6 Gbps, AURA Addressable Gen 2 headers, AURA SYNC, Armoury Crate, Q-LED Core
Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
Comprehensive cooling: PCH heatsink and Fan Xpert
Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 3.2 Gen 1
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
5X Protection III: Multiple hardware safeguards for all-round protection
Technical Specifications
| CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® H470 Chipset |
| Memory | 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) *10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. *11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133. *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. |
| Graphics | 1 x DisplayPort 1.4 1 x VGA 1 x HDMITM 2.1 |
| Expansion Slots | Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel® 10th Gen processors support PCIe 3.0 x16 Intel® H470 Chipset 2 x PCIe 3.0 x1 slots |
| Storage | Total supports 1 x M.2 slot and 4 x SATA6Gb/s ports Intel® H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
| Software Features | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Documentation 1 x User guide |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX Form Factor 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm ) |
| Warranty | 3 Years |
