ASRock
ASROCK B650E STEEL LEGEND WIFI
₹27,540.20
In Stock
Product Attributes
| Motherboard Chipset Id | 17 |
| Socket Id | 3 |
| Ram Type Id | 3 |
| Motherboard Factors Id | 3 |
| Wifi | Y |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 3 |
| Nvme Gen 3 | 0 |
| Nvme Gen 4 | 2 |
| Nvme Gen 5 | 1 |
| Brand | ASRock |
Description

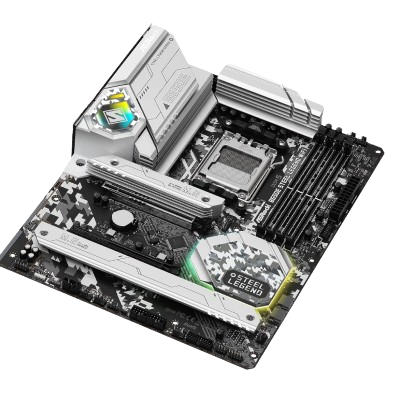

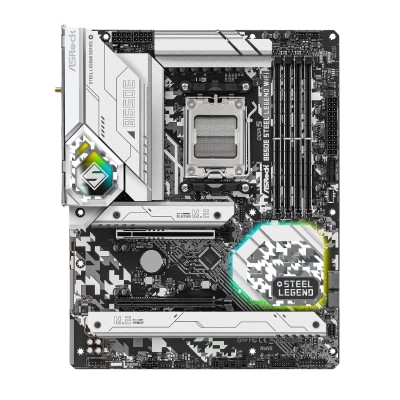

B650E Steel Legend WiFi
Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
16+2+1 Phase Power Design, SPS
4 x DDR5 DIMMs
Supports Dual Channel, up to 7600+ (OC)
1 PCIe 5.0 x16, 1 PCIe 3.0 x16
Graphics Output Options: 1 HDMI, 1 DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio Codec),
Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4),
2 Hyper M.2 (PCIe Gen4x4),
2 SATA3
1 USB 3.2 Gen2x2 Type-C (Front),
2 USB 3.2 Gen2 Type A+C (Rear),
8 USB 3.2 Gen1 (4 Rear, 4 Front),
6 USB 2.0 (2 Rear, 4 Front)
Realtek 2.5G LAN
802.11ax Wi-Fi 6E + Bluetooth 5.2
Technical Specifications
| MODEL NUMBER | ASROCK B650E STEEL LEGEN WIFI |
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - Server-Grade Low-Loss PCB - 16+2+1 Power Phase, 60A SPS - Flexible Integrated I/O Shield - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6EModule EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| CPU | - Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | #NAME? |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory mo |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming M |
| Wireless LAN | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO |
| Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) Supports NVMe SSD as boot disks |
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| RAID | - Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Requires additional M.2 NVMe expansion cards to support RAID 10 |
| USB | - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 8 x USB 3.2 Gen1 (4 Rear, 4 Front) - 6 x USB 2.0 (2 Rear, 4 Front) All USB ports support ESD Protection |
| Connector | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) |

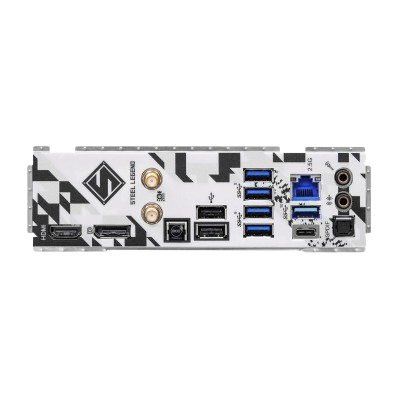

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Por |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |

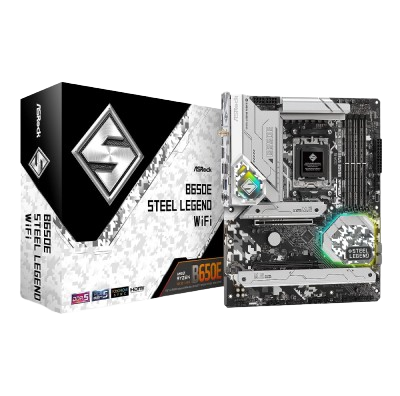

| Accessories | - 1 x User Manual - 2 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 3 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket - 1 x Graphics Card Holder |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
