Asus
Asus TUF-GAMINGX570PLUS
₹25,612.80
In Stock
Product Attributes
| Motherboard Chipset Id | 5 |
| Socket Id | 2 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 3 |
| Wifi | N |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 7 |
| Nvme Gen 3 | 1 |
| Nvme Gen 4 | 1 |
| Nvme Gen 5 | 0 |
| Brand | Asus |
Description

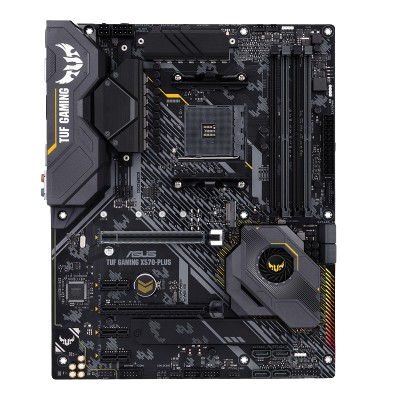

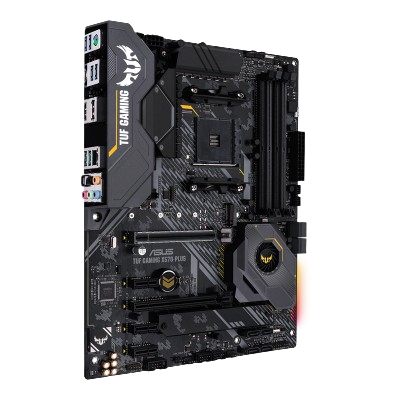

AMD AM4 X570 ATX gaming motherboard with PCIe 4.0, dual M.2, 14 Dr. MOS power stages, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting
Technical Specifications
| CPU | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors * Refer to www.asus.com for CPU support list * Due to CPU limitation, CPU cores supported varies by processors. |
| Chipset | AMD X570 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/ 5000(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.) /3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. |
| Graphics | Integrated Graphics in AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors Multi-VGA output support : HDMI/DisplayPort ports – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz – Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz |
| Expansion Slots | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD RyzenTM 3000 G-Series / 2000 G-Series Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1 |
| Storage | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| Ethernet | Realtek® L8200A ASUS Turbo LAN Utility TUF LANGuard |
| USB | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series / 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-C®) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |

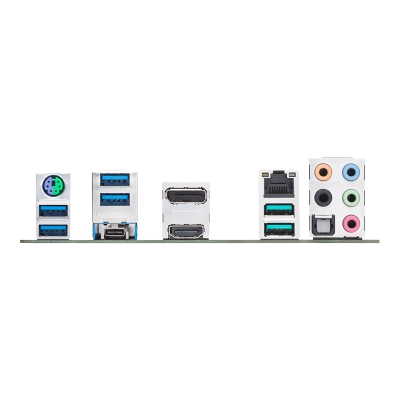

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM) |
| Internal I/O Connectors | 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| Special Features | ASUS TUF PROTECTION – ASUS SafeSlot: Protect your graphics card Investment – ASUS ESD Guard: Enhanced ESD protection – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! – ASUS DIGI+ VRM: Precision control for stable power – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! AURA : – Aura Lighting Control – Aura RGB Strip Headers – Addressable Gen 2 Header ASUS Exclusive Features : – AI Suite 3 – Ai Charger ASUS Quiet Thermal Solution : – Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink – ASUS Fan Xpert 4 ASUS EZ DIY : – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode ASUS Q-Design : – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) – ASUS Q-Slot – ASUS Q-DIMM DIY Friendly Design – Procool – SafeSlot – Digi+ VRM – Highly Durable components – ESD Guards |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WOL by PME, PXE |

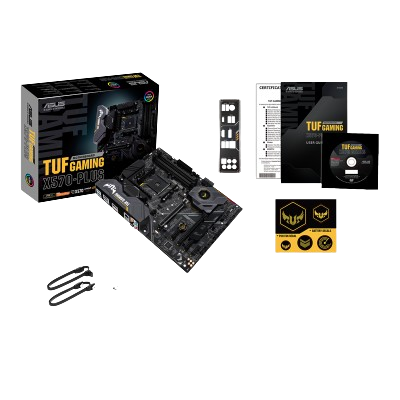

| Accessories | User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s) |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty | 3 Years |
