APC

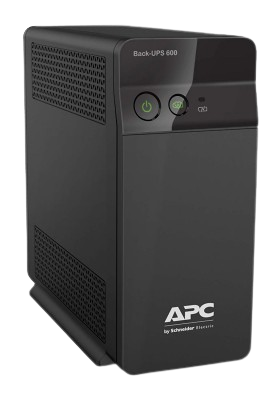

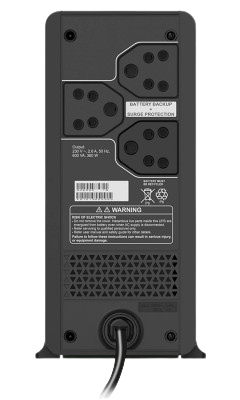

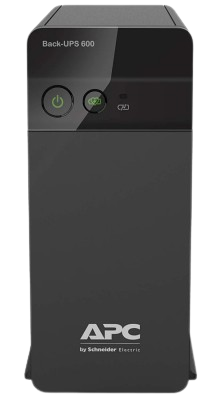

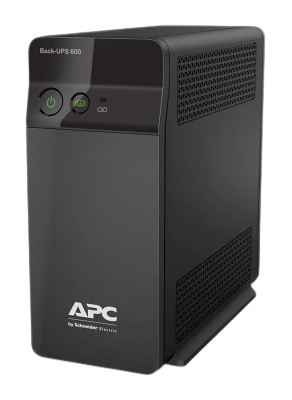

APC UPS BACK-UPS BX600C-IN (600VA)
₹3,873.20
In Stock
Product Attributes
| Brand | APC |
Description
This product is part of the Back-UPS range. This 600VA UPS has 3 outlets that provide UPS power backup and surge protection. It features a built-in AVR and is compatible with low power loads (e.g. Wi-Fi router, DSL modem). Its runtime at 100 Watts is 16 minutes. Its dimensions are 21.8 x 10.7 x 23.7 cm and 4.7 kg. APC Back-UPS is an ideal power backup and protection for home offices, desktop PCs, home entertainment systems, wifi-routers, and electronic devices.
Technical Specifications
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 360 W |
| Rated power in VA | 600 VA |
| output connection type | 3 India 3-pin 6A |
| Cable length | 1.22 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Run Time | View Runtime Graph |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 6 h |
| Number of battery replacement quantity | 1 |
| Battery voltage | 12 V |
| Battery graph comments | Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Extended runtime | 0 |
| Replacement battery | RBC2 |
| Provided equipment | user manual |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Black |
| height | 21.8 cm |
| Width | 10.7 cm |
| Depth | 23.7 cm |
| Net weight | 4.7 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 45...65 Hz auto-sensing |
| plug standard | India 3-pin 6A |
| Input voltage limits | 145...290 V |
| Maximum configurable power in W | 360 W |
| Output frequency | 50 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Full load runtime | 360 W |
| Maximum configurable power in VA | 600 VA |
| Transfer time | 10 ms typical : 12 ms maximum |
| product certifications | BIS |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15000 m |
| Acoustic level | 45 dBA |
| control panel | LED status display with on line : on battery : replace battery and building wiring fault |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 255 J |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 29.5 cm |
| Package 1 Width | 31 cm |
| Package 1 Length | 16.5 cm |
| Package 1 Weight | 5.2 kg |
| Warranty | 2 years repair or replace |
