APC
APC UPS BR1500G-IN (1500VA)
₹18,655.30
In Stock
Product Attributes
| Brand | APC |
Description
APC BR1500G-IN Image

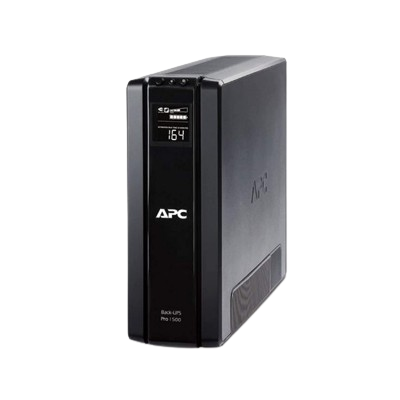

APC Back-UPS Pro, 1500VA/865W, Tower, 230V, 6x 6A Indian outlets, AVR, LCD, User Replaceable Battery
Technical Specifications
| Package 1 Height | 38.1 cm |
| Package 1 Width | 48.3 cm |
| Package 1 Length | 22.9 cm |
| Package 1 Weight | 13.19 kg |
| Main Input Voltage | 230 V |
| SCC14 | 1.07313E+13 |
| Main Output Voltage | 230 V |
| Warranty | 2 years repair or replace |
| Rated power in W | 865 W |
| Rated power in VA | 1500 VA |
| Product or component type | Uninterruptible power supply (UPS) |

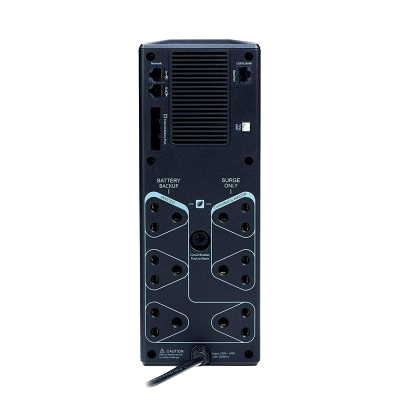

| output connection type | 4 India 3-pin 6A 2 India 3-pin 6A surge |
| Cable length | 1.52 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Run Time | View Runtime Graph |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 7.2 h |
| Number of battery replacement quantity | 1 |
| Additional information | 9Ah x 2 internal batteries |
| Battery charger power | 30 W rated |
| Battery life | 2…4 year(s) |
| Replacement battery | APCRBC124 |
| Battery graph comments | This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v |
| Extended runtime | 0 |
| Provided equipment | telephone cable user manual USB cable warranty card |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Black |
| height | 30.1 cm |
| Width | 11.4 cm |
| Depth | 38.2 cm |
| Net weight | 11.76 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| plug standard | India 3-pin 16A |
| Input voltage limits | 170...294 V |
| Maximum configurable power in W | 865 W |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Efficiency | 85 % (full load) 86 % (half load) |
| Maximum configurable power in VA | 1500 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| product certifications | BIS |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 45 dBA |
| control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 680 J |
| Let through voltage rating | 330 V |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
