APC

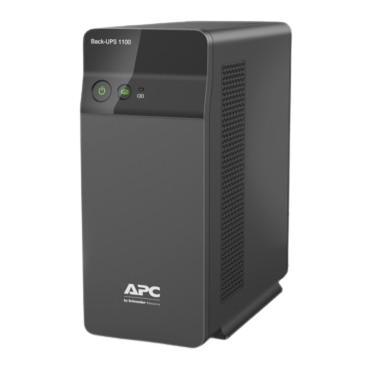

APC Back-UPS BX1100C-IN (1100VA)
₹8,395.00
In Stock
Product Attributes
| Brand | APC |
Description
APC Back-UPS 1100VA, 230V, without auto shutdown software, 5 India outlets (1 surge)
BX1100C-IN
Technical Specifications
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 660 W |
| Rated power in VA | 1100 VA |
| output connection type | 4 India 3-pin 6A 1 India 3-pin 6A surge |
| Cable length | 1.52 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 6 h |
| Number of battery replacement quantity | 2 |
| Battery voltage | 24 V |
| Extended runtime | 0 |
| Provided equipment | user manual |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Black |
| height | 28.2 cm |
| Width | 13.2 cm |
| Depth | 25.9 cm |
| Net weight | 8.98 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 45...65 Hz auto-sensing |
| plug standard | India 3-pin 6A |
| Input voltage limits | 145...290 V |
| Switching current capacity | 07:00 AM |
| Maximum configurable power in W | 660 W |
| Output frequency | 50 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Efficiency | 72 % (full load) 84 % (half load) |
| Full load runtime | 660 W |
| Maximum configurable power in VA | 1100 VA |
| Transfer time | 10 ms typical : 12 ms maximum |
| product certifications | BIS |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15000 m |
| Acoustic level | 45 dBA |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 255 J |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 39.4 cm |
| Package 1 Width | 38.4 cm |
| Package 1 Length | 20.3 cm |
| Package 1 Weight | 10.21 kg |
| Warranty | 1 year repair or replace |
