Antec
Antec SIGNATURE 1000 W PLATINUM Fully Modular
₹21,845.40
In Stock
Product Attributes
| Smps Wattage Id | 5 |
| Smps Type Id | 5 |
| Color Id | 4 |
| Smps Modular | fully_modular |
| Brand | Antec |
Description
Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Signature power supply Series boasts unparalleled stability and 80 PLUS® Platinum-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.
Technical Specifications
| Product Name | SP1000 Platinum |
| Model Name | X8000A505-18 |
| Type | ATX |
| Modular | Fully |
| Dimension (W x L x H) | 150 x 170 x 86mm |
| Warranty | 10 years |
| Input Voltage | 100-240 |
| Input Current | 13A ~ 6.5A |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | APFC PFC at half / full load: >0.95 at AC 110v 60Hz(typical) >0.90 at AC 230v 50Hz(typical) |
| Power Good Signal | 100 ~ 500mS |
| Efficiency | At 20% / 50% / 100% load AC 115V internal, the power efficiency should be at least 90% / 92% / 89%. |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 1000W |
| Operation Temperature | 0 ~ 40°C |
| Regulatory | cTUVus / TUV / CB [IEC62368 Compliant] / CE / FCC / BSMI / 3C / RCM |
| Fan | 135 x 135 x 25(mm) FDB Silent Fan |
| Certifications | 80 Plus Platinum |

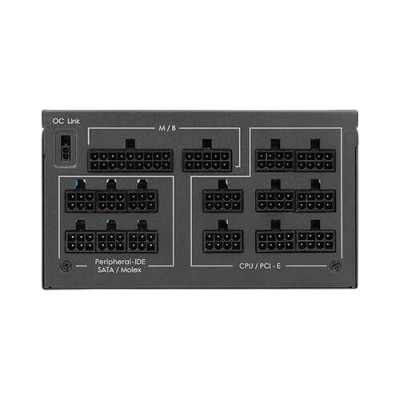

| Connector pin | 1 x MB 24(20+4) Pin |
| Connector eps | 2 x 8(4+4) Pin EPS 12V |
| Connector pci | 8 x 8(6+2) Pin PCI-E |
| Connector sata | 14 x SATA |
| Connector molex | 5 x Molex |
| Connector fdd | 1 x FDD |
| UPC# | 0-761345-11700-5 SP1000 0-761345-11701-2 SP1000 AU 0-761345-11702-9 SP1000 EC 0-761345-11703-6 SP1000 GB 0-761345-11704-3 SP1000 JP |
| Net Weight | 2.11 Kgs |
| Gross Weight | 3.93 Kgs |
