NOCTUA

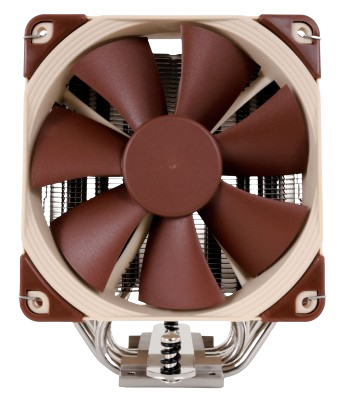

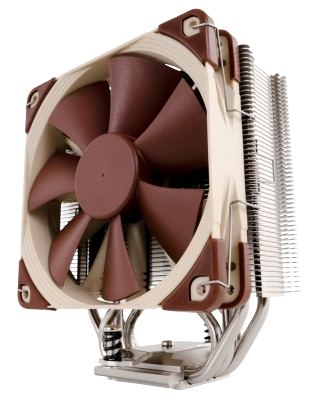

NOCTUA NH-U12S BROWN
₹7,110.45
In Stock
Product Attributes
| Cpu Cooler Fan Size Id | 5 |
| Socket Id | |
| Color Id | 10 |
| No Of Fans | 1 |
| Arg Fan | no |
| Brand | NOCTUA |
Description
The NH-U12S is the latest 12cm model of Noctua’s classic U-series single tower CPU coolers, which have received more than 400 awards and recommendations from the international press. The S-version’s 45mm slim shape guarantees 100% compatibility with tall RAM modules and at the same time, its fine-tuned design and the class-leading NF-F12 Focused Flow™ fan with PWM support for fully automatic speed control allow it to further improve its predecessor’s renowned quiet cooling performance. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-U12S is a complete premium quality solution that combines outstanding performance, quiet operation and excellent compatibility.
Technical Specifications
| Socket compatibility | Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 (included since 2019, older coolers require NM-AM4-UxS) |
| Height (without fan) | 158 mm |
| Width (without fan) | 125 mm |
| Depth (without fan) | 45 mm |
| Height (with fan) | 158 mm |
| Width (with fan) | 125 mm |
| Depth (with fan) | 71 mm |
| Weight (with fan) | 755 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Fan compatibility | 120x120x25 |
| Scope of delivery | NF-F12 PWM premium fan Low-Noise Adaptor (L.N.A.) NT-H1 high-grade thermal compound SecuFirm2™ Mounting Kit Anti-vibration pads and fan-clips for second NF-F12 Noctua Metal Case-Badge |
| Fan Specifications | Model Noctua - NF-F12 PWM Bearing - SSO2 Max. rotational speed (+/- 10%) - 1500 RPM Max. rotational speed with L.N.A. (+/- 10%) - 1200 RPM Min. rotational speed (PWM, +/-20%) - 300 RPM Max. airflow - 93,4 m³/h Max. airflow with L.N.A. - 74,3 m³/h Max. acoustical noise - 22,4 dB(A) Max. acoustical noise with L.N.A. - 18,6 dB(A) Voltage range - 12 V MTTF - >150.000 h |
| Warranty | 6 Years |
