MSI

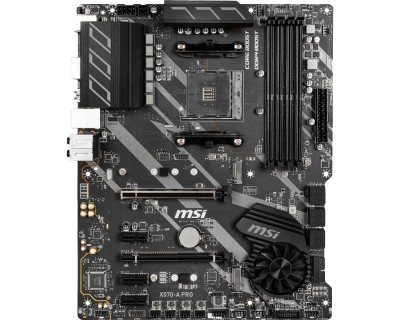

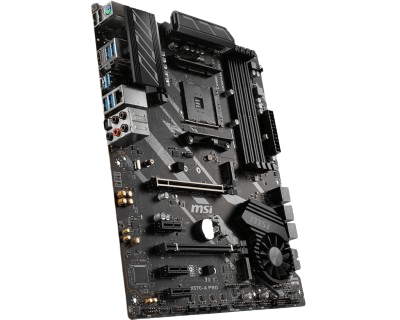

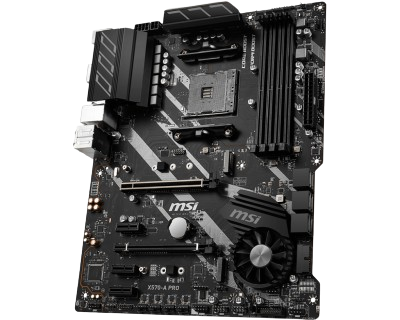

MSI X570-A PRO
₹17,994.05
In Stock
Product Attributes
| Motherboard Chipset Id | 5 |
| Socket Id | 2 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 3 |
| Wifi | N |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 2 |
| Nvme Gen 3 | 1 |
| Nvme Gen 4 | 1 |
| Nvme Gen 5 | 0 |
| Brand | MSI |
Description
MSI Components X570-A Pro Gaming Motherboard (AMD AM4, DDR4, PCIe 4.0, SATA 6Gb/s, USB 3.2 Gen 2, HDMI, ATX)
Technical Specifications
| PROCESSOR | Supports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket |
| CHIPSET | AMD® X570 Chipset |
| MEMORY | 4 DDR4 memory slots, support up to 128GB (depending on the processor)1 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Please refer to Compatibility for more information on compatible memory |
| SLOTS | 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode Ryzen™ 4000 G-Series support PCIe 3.0×16/x0/x0, x8/x0/x8, x8/x4/x4 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode) 3 x PCIe 3.0 x1 slots1 PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.The speeds may vary for different devices |
| ONBOARD GRAPHICS | x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz1 Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3 Only support when using Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics ProcessorsMaximum shared memory of 2048 MB |
| MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE | AMD® X570 Chipset 4x SATA 6Gb/s ports(SATA3-SATA6) 2 x M.2 slot (Key M) M2_1 slot (from AMD® Processor) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD® X570 Chipset) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series,Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s supports 2242/ 2260/ 2280 storage devices ASMedia ASM1061 2x SATA 6Gb/s ports (SATA1, SATA2) |
| RAID | AMD® X570 Chipset Supports RAID 0, RAID 1 and RAID 10 |
| USB | AMD® X570 Chipset 6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors) 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® Processor 2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| AUDIO | Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
| LAN | 1 x Realtek® 8111H Gigabit LAN Controller |
| INTERNAL CONNECTORS | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Serial port connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 4 x EZ Debug LEDs |

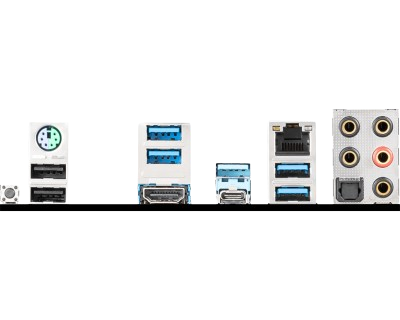

| BACK PANEL PORTS | Keyboard / Mouse USB 3.2 Gen1 Type-A LAN Port HD Audio Connectors Flash BIOS Button USB 2.0 Ports HDMI Port USB 3.2 Gen2 Ports (Type-A + C) USB 3.2 Gen1 Type-A Ports Optical S/PDIF out |
| DIMENSIONS | 12 in. x 9.6 in. (30.4 cm x 24.3 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
