MSI

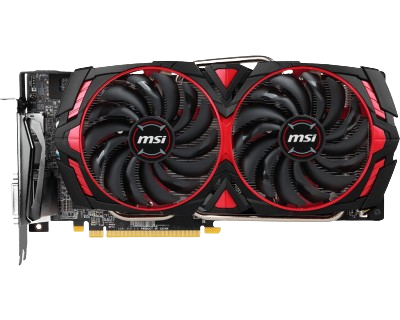

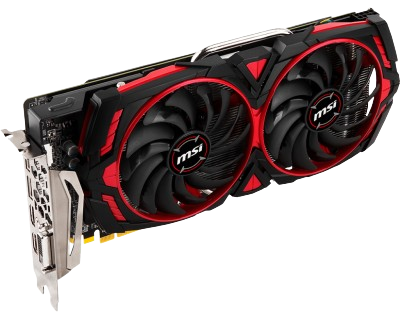

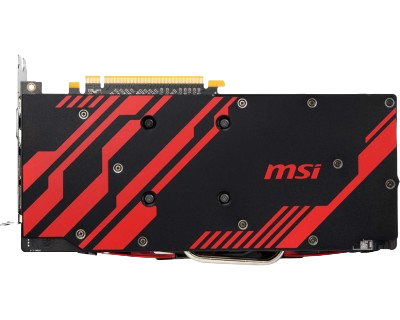

MSI Radeon RX 580 ARMOR OC 8GB GDDR5
₹25,875.00
In Stock
Product Attributes
| Gc Chipset Id | 26 |
| Gc Memory Id | 15 |
| Pci Slot Size Id | 4 |
| Pci Generation Id | 4 |
| Color Id | 12 |
| Tdp | 185 W |
| No Of Fans | 2 |
| Platform | AMD |
| Gc Length Id | 54 |
| Cuda Cores Units | 2304 Units |
| Stream Processor Units | NA |
| Core Clocks Upto | 1380 MHz |
| Memory Speed | 8000 MHz |
| Output Ports Hdmi | 2 |
| Output Display Port | 2 |
| Output Type C | 0 |
| Output Mini Dp | 0 |
| Gc Momory Bus Id | 3 |
| Brand | MSI |
Description
Core/Memory
Boost Clock / Memory Frequency
up to 1380 MHz / 8000 MHz (OC Mode)
up to 1366 MHz / 8000 MHz (Gaming Mode)
up to 1340 MHz / 8000 MHz (Silent Mode)
8GB GDDR5
TORX 2.0 FAN: Supremely silent
Dispersion fan blade: Steeper curved blade accelerating the airflow.
Traditional fan blade: Provides steady airflow to massive heat sink below.
Double ball bearing: Strong and lasting core for years of smooth gaming.
Afterburner Overclocking Utility
Wireless control through Android/iOS devices.
Predator: In-game video recording.
Supports multi-GPU setups.
Military Class 4 Components
Certified to MIL-STD-810G standards for top stability and quality.
Built with Hi-c CAP, Solid CAP, and New SFC components.
Technical Specifications
| MODEL NAME | Radeon™ RX 580 ARMOR 8G OC |
| GRAPHICS PROCESSING UNIT | Radeon™ RX 580 |
| INTERFACE | PCI Express x16 |
| CORE CLOCKS | up to 1366 MHz |
| CUDA® CORES | 2304 Units |
| MEMORY SPEED | 8000 MHz |
| MEMORY | 8GB GDDR5 |
| MEMORY BUS | 256-bit |

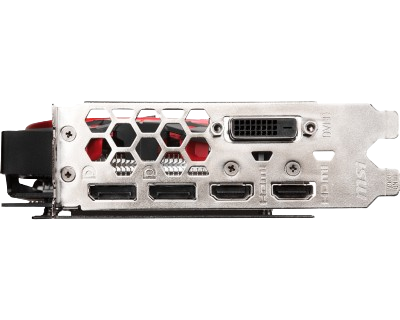

| OUTPUT | DisplayPort x 2 / HDMI™ x 2 / DL-DVI-D |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 185 W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 500 W |
| CARD DIMENSION (MM) | 269 x 125 x 38 mm |
| WEIGHT (CARD / PACKAGE) | 653 g / 1152 g |
| DIRECTX VERSION SUPPORT | 12 |
| OPENGL VERSION SUPPORT | 4.5 |
| MULTI-GPU TECHNOLOGY | Crossfire™, 2-Way (Bridgeless) |
| AFTERBURNER OC | Y |
| MAXIMUM DISPLAYS | 5 |
| VR READY | Y |
