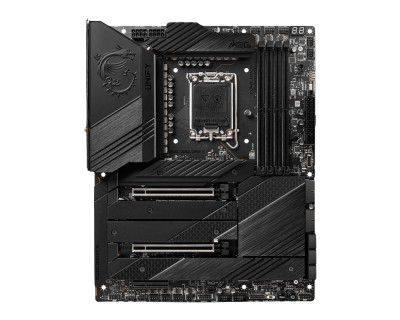

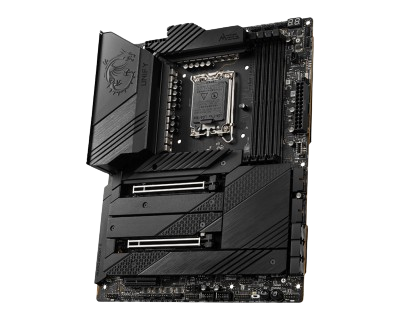

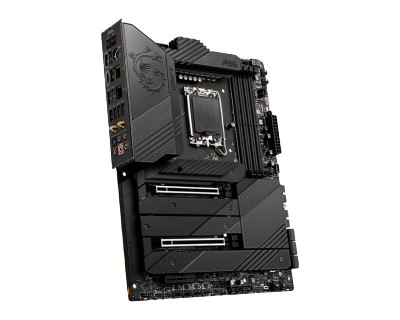

MSI MEG Z690 UNIFY
₹55,039.00
In Stock
Product Attributes
| Motherboard Chipset Id | 14 |
| Socket Id | 6 |
| Ram Type Id | 3 |
| Motherboard Factors Id | 3 |
| Wifi | Y |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 5 |
| Nvme Gen 3 | 1 |
| Nvme Gen 4 | 4 |
| Nvme Gen 5 | 0 |
| Brand | MSI |
Description
Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, it is ready to deliver the world class memory performance.
Quintuple M.2 Connectors: Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. Double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Extreme Power Design: Premium digital PWM, direct 19+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the true power of your processors.
Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
Dual 2.5G LAN with latest Wi-Fi 6E: Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, Front & Rear USB 3.2 Gen 2x2 20G.
8 Layer Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.
Technical Specifications
| PROCESSOR | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1 Processor socket LGA1700 |
| CHIPSET | Intel® Z690 Chipset |
| MEMORY | 4x DDR5 memory slots, support up to 128GB 1 Supports 1R 5600 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, unbuffered memory |
| EXPANSION SLOTS | 2x PCIe x16 slots (From CPU) Support PCIe 5.0 Support x16/ x0, x8/ x8 1x PCIe x4 slot (From Z690 Chipset) Supports PCIe 3.0 x4 |
| MULTI-GPU | Supports AMD® CrossFire™ Technology Supports NVIDIA® SLI™ Technology |
| USB | Intel® Z690 Chipset 2x USB 3.2 Gen2x2 20Gbps ports ( 1 Type-C port on the back panel, 1 Type-C internal connector) 3x USB 3.2 Gen2 10Gbps Type-A ports on the back panel 2x USB 2.0 Type-A port on the back panel Hub GL3590 4x USB 3.2 Gen2 10Gbps ports on the back panel Hub ASM1074 4x USB 3.2 Gen1 5Gbps ports available through internal USB connectors Hub GL850G 4x USB 2.0 ports available through internal USB connectors |
| STORAGE | 6x SATA 6Gb/s ports SATA5~8 (From Z690 Chipset) SATAA~B (From ASMedia ASM1061) 5x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From Z690 Chipset) Supports PCIe 4.0×4 Supports SATA 6Gb/s Supports 2260/ 2280/ 22110 storage devices M2_4 slot (From Z690 Chipset) Supports PCIe 3.0×4 Supports 2260/ 2280 storage devices M2_5 slot (From Z690 Chipset) Supports PCIe 4.0×4 Supports 2260/ 2280 storage devices M2_2~5 supports Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1 Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage device |
| AUDIO | Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 2x Intel® I225-V 2.5Gbps LAN controllers |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 2 , FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 version 21H1 and Windows 11.Bluetooth 5.2 will be ready in Windows 10 version 21H1 and Windows 11. |
| INTERNAL CONNECTORS | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 5x M.2 slots (M-Key) 1x USB 3.2 Gen 2×2 20Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connector 1x Water flow connector 1x V-check point 1x TPM module connector 1x Tuning controller connector 1x Debug port connector 1x TBT connector (Supports RTD3 |
| LED FEATURES | 1x 2-Digit Debug Code LED 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin JCORSAIR LED connector |

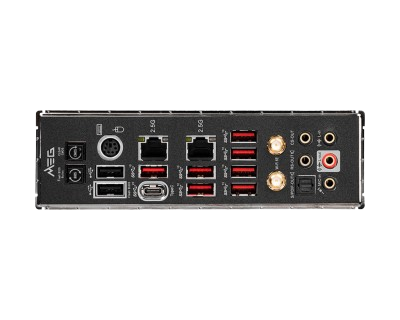

| BACK PANEL PORTS | Clear CMOS Button PS/2 Keyboard / Mouse Port 2.5G LAN 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button USB 2.0 USB 3.2 Gen 2×2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) Optical S/PDIF-Out |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| DIMENSIONS | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
| Warranty | 3 Years |
