MSI

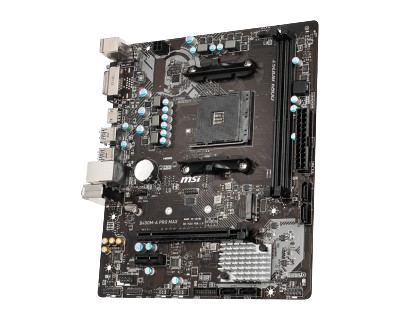

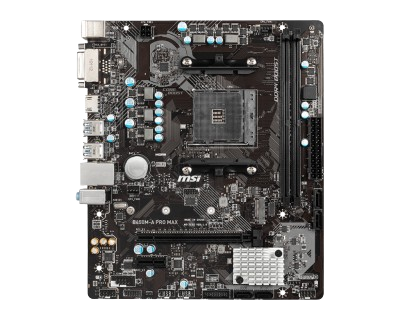

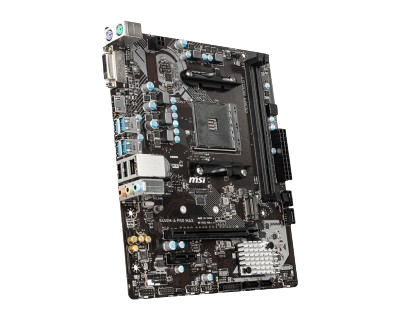

MSI B450M-A PRO MAX
₹6,003.00
In Stock
Product Attributes
| Motherboard Chipset Id | 3 |
| Socket Id | 2 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 2 |
| Wifi | N |
| Pci Express | No |
| Ram Slots | 2 |
| Total Nvme Slots | 1 |
| Nvme Gen 3 | 1 |
| Nvme Gen 4 | 0 |
| Nvme Gen 5 | 0 |
| Brand | MSI |
Description
AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1
Supports 1st, 2nd and 3rd Gen AMD® Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4
Supports DDR4 Memory, up to 4133 (OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
Audio Boost: Reward your ears with studio grade sound quality.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Technical Specifications
| Model | B450M-A-PRO-MAX |
| Processor | Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 |
| Chipset | AMD® B450 Chipset |
| Memory | 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required. Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)For AMD Ryzen Gen3 (R5/R7/R9)2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) For AMD Other CPU2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory |
| Slots | 1 x PCIe 3.0 x16 slotSupports x16 speed1st, 2nd and 3rd Gen AMD Ryzen™ Supports x8 speedRyzen™ with Radeon™ Vega Graphics 2nd Gen AMD Ryzen™ with Radeon™ Graphics A-series Athlon™ X4 Supports x4 speedAMD® Athlon™ with Radeon™ Vega Graphics PCIe 2.0 x1 slot |
| Onboard Graphics | 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2 Only support when using the processor with Graphicss Maximum shared memory of 2048 MB |
| Storage | AMD® B450 Chipset 4 x SATA 6Gb/s portsSupports RAID 0, RAID1 and RAID 10 1x M.2 slot (Key M)Supports PCIe 3.0 x4 and SATA 6Gb/s1st, 2nd and 3rd Gen AMD Ryzen™ Ryzen™ with Radeon™ Vega Graphics 2nd Gen AMD Ryzen™ with Radeon™ Graphics Supports PCIe 3.0 x2 and SATA 6Gb/sAMD® Athlon™ with Radeon™ Vega Graphics A-series Athlon™ X4 Supports 2242/2280/22110 storage devices |
| USB | AMD® B450 Chipset 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) |
| Audio | Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x Realtek® 8111H Gigabit LAN controller |
| Internal Connectors | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper |

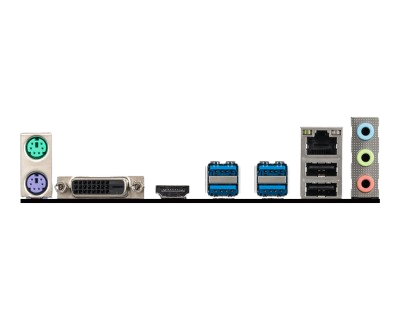

| Back Panel Ports | Mouse DVI-D Port USB 3.2 Gen1 LAN Port Keyboard HDMI Port USB 2.0 Ports HD Audio Connectors |
| Dimensions | 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm) m-ATX Form Factor |
| Mounting | 6 mounting holes |
| Operating System | Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| Warranty | 3 Years |
