GALAX
GALAX Revolution - 01 Mid Tower ATX (WHITE)
₹5,117.50
In Stock
Product Attributes
| Color Id | 6 |
| Cabinet Type Id | 3 |
| Cabinet Light Id | 1 |
| Cabinet Front Radiator Support Id | 1 |
| Cabinet Top Radiator Support Id | 3 |
| Cabinet Type C Id | 3 |
| Cabinet Hdd Three Point Five Bay Id | 3 |
| Mesh Glass Front | semi_mesh |
| Tempered Glass | yes |
| Gc Length Id | 8 |
| Front Usb | 2 |
| Cabinet Fan Front | 3 |
| Cabinet Fan Rear | 1 |
| Brand | GALAX |
Description
GALAX PC Case (REV-01W)
ATX, 4 ARGB FAN

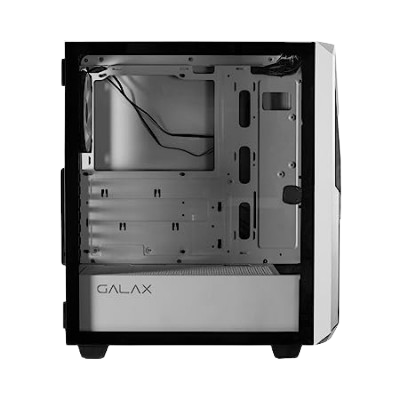

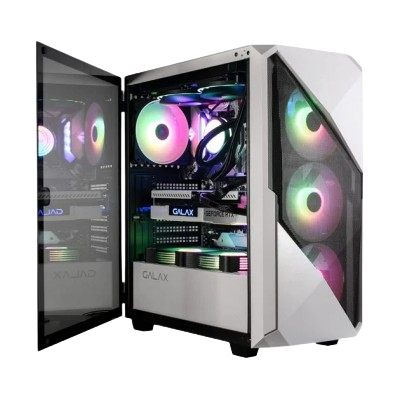

Rocking its all new arctic white finish, REV-01W is a mid tower PC case that supports ATX, M-ATX and ITX motherboards. Besides having a front panel mesh design for better heat dissipation, it also supports watercooling systems and up to 6 cooling fans installation. For the ease of customization, REV-01W also comes with a tempered glass panel and an built in ARGB controller, including the V2.0 PWM+ARGB(Rainbow) Hub.
Product Code: CG01AGWA4A0
Technical Specifications
| Form Factor (Midi, Micro, Mini ITX, Full) | Midi |
| PSU Form Factor | Bottom/ATX |
| M/B Form Factor | ATX、M-ATX |
| Front Panel | ABS, Mesh |
| Top Panel | Metal cover |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Metal cover |
| 5.25" (ODD) External Drive Bay(s) | *0 |
| 3.5" External Drive Bay(s) | *0 |
| 3.5" (HDD) Internal Drive Bay(s) | *2 |
| 2.5" (SSD) Internal Drive Bay(s) | *2 |

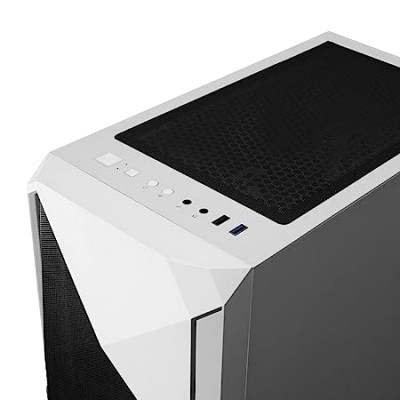

| I/O Buttons | *4 |
| USB1.1 Port(s) | *0 |
| USB2.0 Port(s) | *1 |
| USB3.0 Port(s) | *1 |
| USB3.1 Port(s) | *0 |
| HD Audio Support | *1 |
| Card Reader (Support) | *0 |
| I/O P-Lock | *0 |
| I/O RGB Controller | *1 Rainbow+PWM V2.0 |
| I/O Controller max. fans | *5 |
| I/O RGB Controller max. LED strips | *2 |
| I/O Remote (IR or RF) | *0 |
| Front Cooling Fan Support | 3x120mm,2x140mm(Fan optional) |
| Top Cooling Fan Support | 2x120mm,2x140mm(Fan optional) |

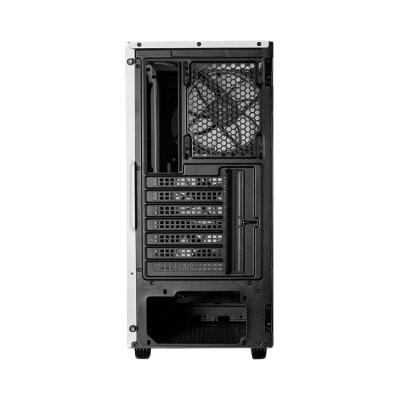

| Rear Cooling Fan Support | 1x120mm (Fan optional) |
| Left Side Cooling Fan Support | 0 |
| PSU Cover Cooling Fan Support | 2x120mm (Fan optional) |
| Front Water Cooling Support | 120mm, 140mm, 240mm, 280mm, 360mm |
| Top (Radiator Size) | 120mm, 140mm, 240mm |
| Rear (Radiator Size) | 120mm*1 |
| Dust Cover | Bottom and top cover with dust filter |
| Slots | *7 |
| Chassis | (L)360*(W)210*(H)440 |
| Full Case (inc Fascia) | (L)424*(W)215*(H)460 |
| Carton | (L)506*(W)266*(H)465 |
| Net Weight (Kg) | 4.9 |
| Gross Weight (Kg) | 5.8 |
| VGA Card Length | up to 340 |
| CPU Cooler Height | 170 |
| Cable Management Depth | 22 |
