GALAX
GALAX (REV-05) Revolution 05 MID TOWER (BLACK)
₹4,052.60
In Stock
Product Attributes
| Color Id | 4 |
| Cabinet Type Id | 3 |
| Cabinet Light Id | 6 |
| Cabinet Front Radiator Support Id | 1 |
| Cabinet Top Radiator Support Id | 4 |
| Cabinet Type C Id | 3 |
| Cabinet Hdd Three Point Five Bay Id | 3 |
| Mesh Glass Front | mesh_only |
| Tempered Glass | yes |
| Gc Length Id | 15 |
| Front Usb | 3 |
| Cabinet Fan Front | 3 |
| Cabinet Fan Rear | 1 |
| Brand | GALAX |
Description

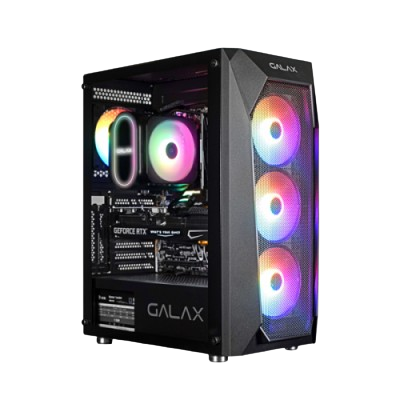

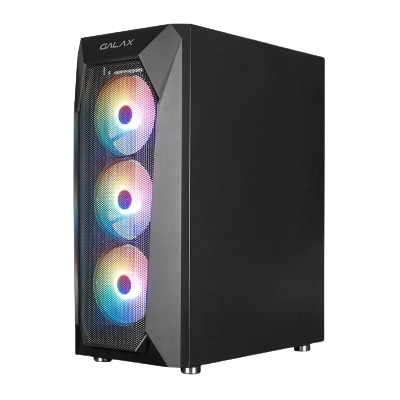

GALAX PC Case (REV-05)
ATX, M-ATX, ITX
Compatible with ATX, M-ATX, ITX motherboards, REV-05 is by far the tallest PC case in the Revolution family. Standing tall at 470mm, it provides a spacious interior for customization, allowing you to choose between vertical or horizontal mounting for the graphics card and maximizing cooling and storage potential for your next build.
Product Code: CGG5ANBA4B0
Technical Specifications
| Form Factor (Midi, Micro, Mini ITX, Full) | ATX, M-ATX, ITX |
| Chassis | (L)350*(W)205*(H)470mm |
| PSU Form Factor | ATX |
| M/B Form Factor | ATX, M-ATX, ITX |

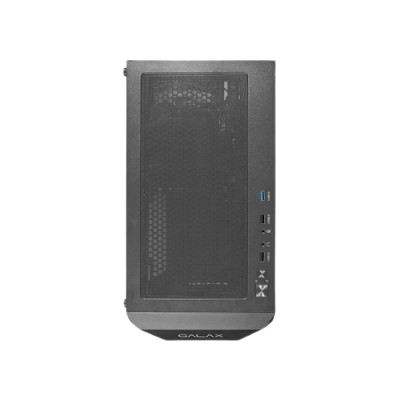

| Front Panel | ABS,Mesh cover |
| Top Panel | Metal cover |
| Left | Tempered Glass |

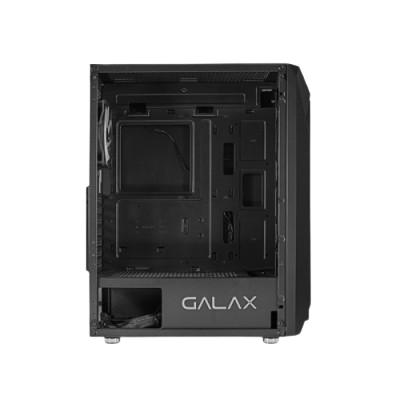

| Right | Metal cover |
| 5.25" (ODD) | *0 |
| 3.5" | *0 |
| 3.5" (HDD) | *2 |
| 2.5" (SSD) | *3 |
| Buttons | *2 |
| USB1.1 Port(s) | *0 |
| USB2.0 Port(s) | *2 |
| USB3.0 Port(s) | *1 |
| USB3.1 Port(s) | *0 |
| HD Audio Support | *1 |
| Card Reader (Support) | *0 |
| P-Lock | *0 |
| RGB Controller | *0 |
| Controller max. fans | *0 |
| RGB Controller max. LED strips | *0 |
| Remote (IR or RF) | *0 |
| Front | 240mm/280mm/360mm |
| Top | 240mm/280mm |
| Rear | 120mm |
| Side | 0 |
| Bottom | 2x120mm (Fan optional) |
| Full Case (inc Fascia) | (L)400.6*(W)205*(H)481.5mm |
| Carton | (L)532*(W)258*(H)465mm |
| Net Weight (Kg) | 4.3KG |
| Gross Weight (Kg) | 4.95KG |
| VGA Card Length | up to 330mm |
| CPU Cooler Height | 160mm |
| Cable Management Depth | 18mm |
