DEEPCOOL

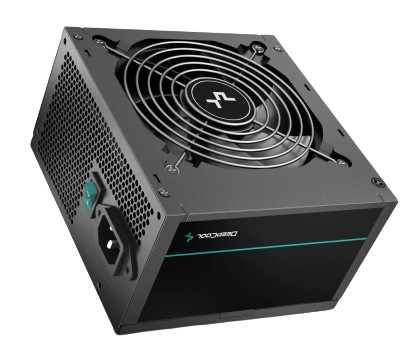

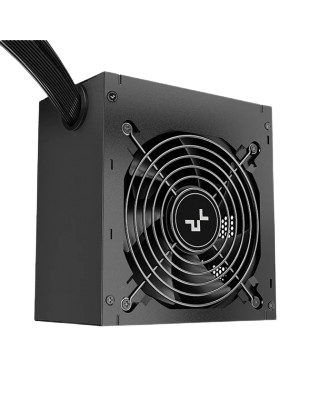

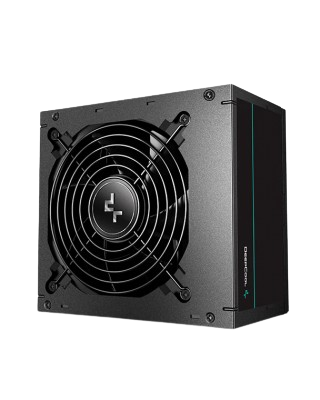

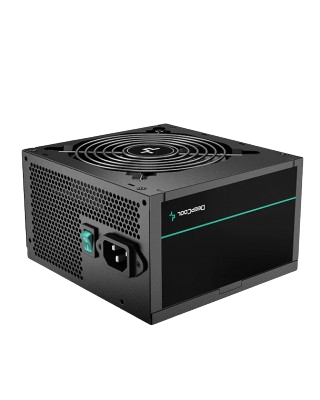

DEEPCOOL PM650D 80 PLUS GOLD
₹6,310.05
In Stock
Product Attributes
| Smps Wattage Id | 2 |
| Smps Type Id | 2 |
| Color Id | 4 |
| Smps Modular | non_modular |
| Brand | DEEPCOOL |
Description
PM650DDeepCool PM650D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.
Technical Specifications
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | GOLD |
| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(75% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP |
| Operation Temperature | 0-40°C |
| Regulatory | TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS/RCM/CAN ICES-003(B)/NMB-003(B) |
| Erp Regulation | ErP(2014) |
| MTBF | 100,000 Hours |
| EAN P/N | 6933412709657 R-PM650D-FA0B-AU 6933412709664 R-PM650D-FA0B-CN 6933412709671 R-PM650D-FA0B-EU 6933412709688 R-PM650D-FA0B-JP 6933412709695 R-PM650D-FA0B-UK 6933412709701 R-PM650D-FA0B-US 6933412709718 R-PM650D-FA0B-WO 6933412710097 R-PM650D-FA0B-AR 6933412710103 R-PM650D-FA0B-BR 6933412711117 R-PM650D-FA0B-BU |
