DEEPCOOL

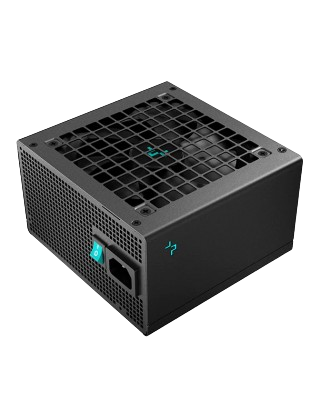

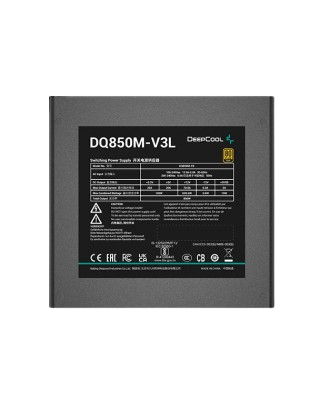

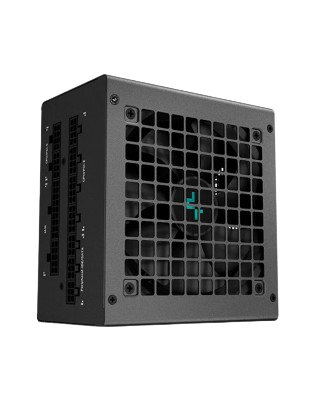

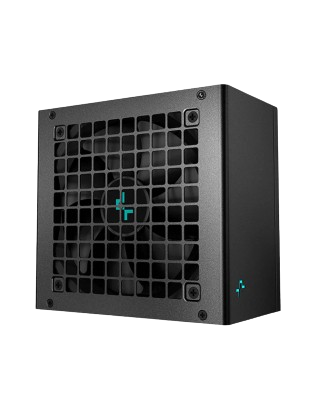

DEEPCOOL DQ850M-V3L 80 PLUS GOLD (BLACK)
₹10,637.50
In Stock
Product Attributes
| Smps Wattage Id | 4 |
| Smps Type Id | 2 |
| Color Id | 4 |
| Smps Modular | fully_modular |
| Brand | DEEPCOOL |
Description
The DeepCool DQ850M-V3L is a fully modular power supply that adopts a new pure black shell, is 80 PLUS gold certified, utilizes a mainstream active PFC + full-bridge LLC resonance + DC/DC architecture, and uses all Japanese capacitors. The power output is stable and efficient, making it an excellent choice for AAA games.
Technical Specifications
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | Gold |
| Fan Size | 120mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Full Japan Electrolytic Capacitors |
| Power Good Signal | 100-500ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | SCP,OPP,OTP,OVP,OCP,UVP |
| Operation Temperature | 0 - 40 °C |
| Regulatory | CB/CCC/CE/FCC/UKCA/BIS/EAC/CAN ICES-003(B)/NMB-003(B) |
| Erp Regulation | ErP 2014 |
| MTBF | 100,000 Hours |
| EAN P/N | 6933412715689 R-DQ850M-FB0B-CN 6933412715696 R-DQ850M-FB0B-WO 6933412715702 R-DQ850M-FB0B-BP 6933412716419 R-DQ850M-FB0B-EU 6933412716433 R-DQ850M-FB0B-UK 6933412716440 R-DQ850M-FB0B-US |
