CoolerMaster

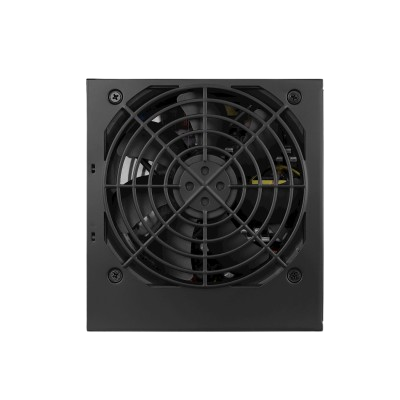

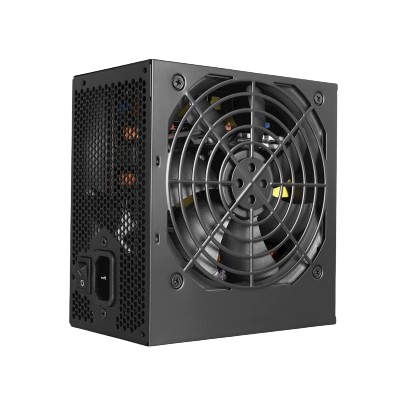

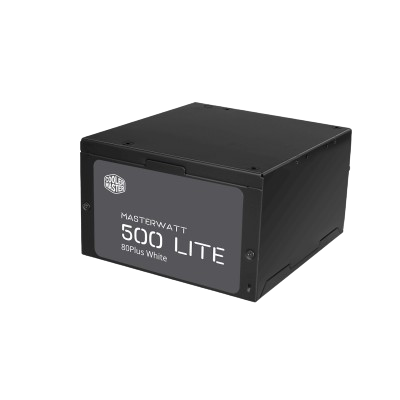

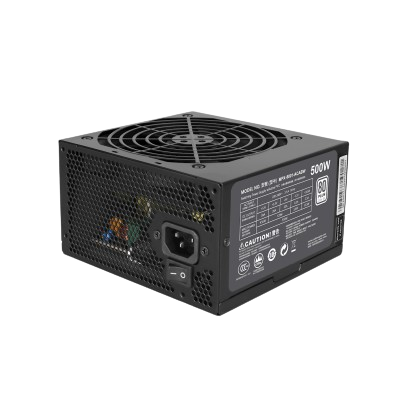

CoolerMaster MASTERWATT LITE 500 80 PLUS NON MODULAR
₹3,632.85
In Stock
Product Attributes
| Smps Wattage Id | 8 |
| Smps Type Id | 4 |
| Color Id | 4 |
| Smps Modular | non_modular |
| Brand | CoolerMaster |
Description
MASTERWATT LITE 500
ERP2013
Advanced Circuit Design
Silent and Durable Fan
Green Power
Safety Guardian
80 Plus Standard Certified
Technical Specifications
| Product Name | MasterWatt Lite 500W Full Range |
| Model | MPX-5001-ACAAW |
| ATX Version | Intel Form Factor ATX 12V V2.31 |
| Dimensions (L x W x H) | 150 x 140 x 86 mm |
| Input Voltage | 100-240V |
| Input Current | 8-4A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC (>0.9 Typical) |
| Power Good Signal | 100 - 500 ms |
| Hold Up Time | >10ms at 100% Full Load |
| Efficiency | 80% Typically Load |
| MTBF | >100,000 Hours |
| Fan Size | Silent 120mm HDB Fan |
| Noise Level @ 20% | 19.9 dBA |
| Noise Level @ 50% | 21.9 dBA |
| Noise Level @ 100% | 33.2 dBA |
| Protections | OVP, UVP, OPP, OTP, OCP, SCP |
| Regulatory | TUV, CE, BSMI, FCC, cTUV-Rhus, KC, CCC, EAC, RCMC |
| ErP 2013 Lot 6 | Yes |
| MB 20+4 Pin Connectors | 1 |
| CPU 12V 4+4 Pin Connectors | 1 |
| PCI-e 6+2 Pin Connectors | 2 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| FDD Cable 4 Pin Connectors | 1 |
| Warranty | 3 Years |
| 80 Plus | Standard |
| Wattage | 500 to 750W |
| Modular | Non Modular |
| Series | MasterWatt Lite Series |
