| Color Id | 4 |
| Cabinet Type Id | 2 |
| Cabinet Light Id | 1 |
| Cabinet Front Radiator Support Id | 1 |
| Cabinet Top Radiator Support Id | 3 |
| Cabinet Type C Id | 3 |
| Cabinet Hdd Three Point Five Bay Id | 3 |
| Mesh Glass Front | glass_with_side_mesh |
| Tempered Glass | yes |
| Gc Length Id | 13 |

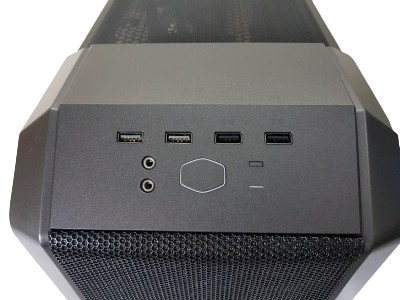

| Front Usb | 4 |
| Cabinet Fan Front | 2 |
| Cabinet Fan Rear | 1 |
| Brand | CoolerMaster |
| Model Number | MCM-H500-IGNN-S00 |
| Color(s) | Iron Grey |
| Materials - Body | Steel |
| Materials | Mesh, Plastic, Mesh (Front Panel), Acrylic & Plastic (Front Panel), Steel & Plastic (Top Panel), Tempered Glass (Left Side Panel), Steel (Right Side Panel) |
| Dimensions (L x W x H) | 450 x 220 x 445mm (Excl. Panels), 525 x 228 x 502mm (Incl. Panels) |
| Motherboard Support | ATX, Micro ATX, Mini ITX |

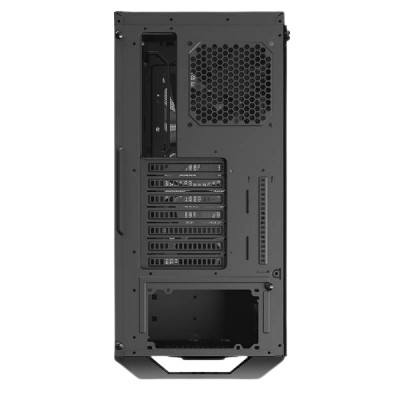

| Expansion Slots | 7 |
| 5.25" Drive Bays | N/A |
| 2.5" / 3.5" Drive Bays (Combo) | 2 |
| Drive Bays 2.5" SSD | 2 |
| I/O Port - Power-LED Color | White |
| I/O Port - HDD-LED Color | White |
| I/O Port - USB-Ports | 2x USB 2.0, 2x USB 3.0 |
| I/O Port - Audio In/Out | Yes (support HD audio) |
| I/O Port - Reset Switch | Yes |
| RGB Control | Onboard button on the RGB Controller or via the Reset Switch (1x 1-to-3 RGB Splitter Cable Included) |

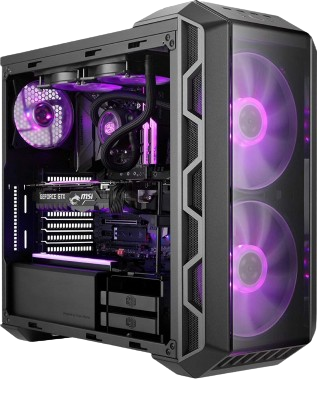

| Pre-installed Fans - Front | 2x 200mm RGB Fan |
| Pre-installed Fans - Rear | 1x 120mm (Black) |
| Fan Support - Top | 2x 120mm, 2x 140mm, 1x 200mm |
| Fan Support - Front | 3x 120mm, 2x 140mm, 2x 200mm |
| Fan Support - Rear | 1x 120mm |
| Radiator Support - Top | 120mm, 140mm, 240mm |
| Radiator Support - Front | 120mm, 140mm, 200mm, 240mm, 280mm, 360mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 167mm/6.5" |
| Clearance - PSU | 180mm/7.1" |
| Clearance - GFX | 410mm/16.1" |
| Cable Routing - Behind Motherboard Tray | 30mm |
| Dust Filters | Top, Front, Bottom |
| Power Supply Support | Bottom Mount, ATX |
| EAN Code | 4.72E+12 |
| UPC Code | 8.84E+11 |
| Series | MasterCase Series |
| Size | Mid Tower |
| Legacy | Cases |
