COLORFUL
COLORFUL H610M-K M.2 V20
₹6,785.00
In Stock
Product Attributes
| Motherboard Chipset Id | 11 |
| Socket Id | 6 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 2 |
| Wifi | N |
| Pci Express | No |
| Ram Slots | 2 |
| Total Nvme Slots | 1 |
| Nvme Gen 3 | 1 |
| Nvme Gen 4 | 0 |
| Nvme Gen 5 | 0 |
| Brand | COLORFUL |
Description

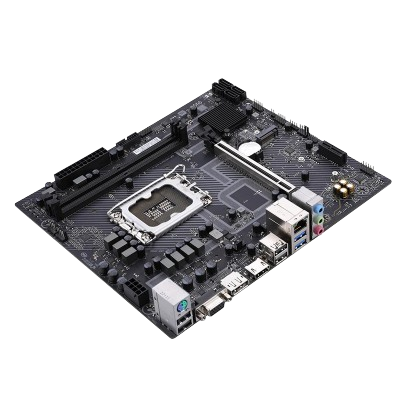

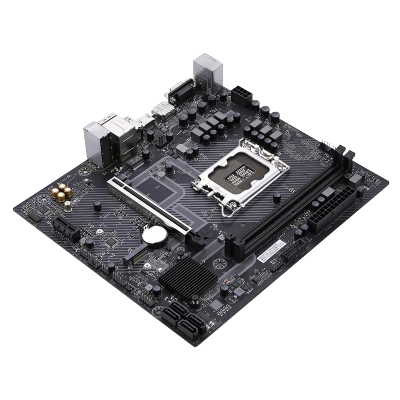

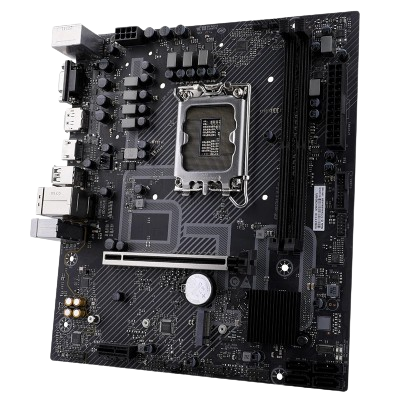

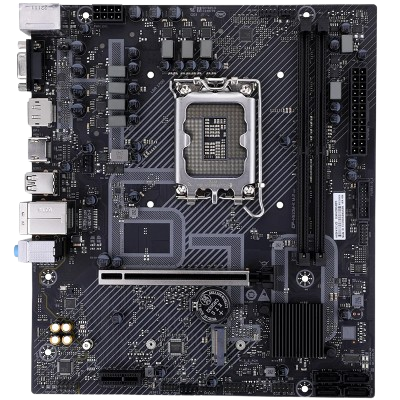

H610M-K M.2 V20
• 6+1 phase power supply (DrMOS 55A)
• Gigabit wired LAN;
• 2 USB 3.2 Gen 1 ports;
• 4 USB 2.0 ports;
• 1 M.2:2242/2280 slot, supporting PCIE GEN3 X4/ SATA;
•HDMI+DP display interface and 1 VGA interface;
•1 CPU fan socket, 2 system fan sockets;
•Six protection technologies, the product runs more stably;
•200 procedures are strictly tested, and the quality is guaranteed;
• The PCB atomization process is fully upgraded;
• “410” high-quality service, after-sales guarantee;
Technical Specifications
| Model | H610M-K M.2 V20 |
| Product Series | Colorful |
| Chipset | Intel H610 |
| Processor | Supports 14th/13th/12th Gen Intel® Core™ Processors (Socket 1700) |
| Memory | 2 DIMM slots，support dual channel DDR4-3200/3000/2800/2666/2400 MHz ; |
| Graphics Support | 1*PCI Express 4.0 x 16 slot |
| SATA Ports | 4*SATA3.0 6Gb/s ports |
| Board I/O | 1*DP port,1*HDMI port,1*VGA port; 4*USB 2.0 ports,2*USB 3.2 Gen1 ports; 3*audio ports; |
| Expansion Slots | 1*PCI Express 4.0x16 slot,1*PCI Express3.0X1 slot |
| BIOS | 128M UEFI |
| Power Management | CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
| LAN | 1000Mbit LAN |
| Audio | 6-Channel High Definition audio |
| Configuration | 235*207mm,M-ATX |
