Asus
Asus ROG STRIX Z590-F GAMING WIFI
₹34,526.45
In Stock
Product Attributes
| Motherboard Chipset Id | 10 |
| Socket Id | 4 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 3 |
| Wifi | Y |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 4 |
| Nvme Gen 3 | 2 |
| Nvme Gen 4 | 2 |
| Nvme Gen 5 | 0 |
| Brand | Asus |
Description

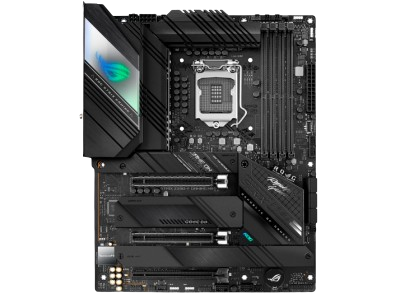

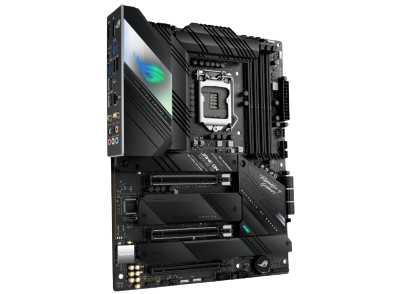

Intel® Z590 LGA 1200 ATX motherboard with PCIe 4.0, 14+2 teamed power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel® 2.5 Gb Ethernet, four M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C®, SATA and Aura Sync RGB lighting
Technical Specifications
| CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Z590 |
| Memory | DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/ 4700(OC)/4600(OC)/ 4500(OC)/ 4400(OC) / 4266(OC)/4133(OC)/4000 (OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/ 3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz MHz Non-ECC, Un-buffered Memory*Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics | * Graphics specifications may vary between CPU types.”** For Intel® 11th Core™ i5/ i7/ i9 processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz . Please refer to www.intel.com for any update. Please refer to www.intel.com for any update. ” *** For Intel® 11th Core™ i5/ i7/ i9 processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update. **** VGA resolution support depends on processors’ or graphic cards’ resolution. |
| Expansion Slots | 2 x PCIe 4.0/3.0 x16 (x16, x8/x4) + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th &10th Gen Processors2 x PCIe 4.0/3.0 x16 slot(s)*- Intel® 11th support PCIe 4.0 x16 or x8/x4 mode(s)- Intel® 10th processors support PCIe 3.0 x16 or x8/x4 mode(s) Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* * Support PCIe bandwidth bifurcation for RAID on CPU function. |
| Storage | Intel®11th &10th Gen Processors*M.2_1 slot (Key M), type 2242/2260/2280/22110 – Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/2260/2280/22110 – Intel® 11th processors support PCIe 4.0 x4 mode – Intel® 10th processors support PCIe 3.0 x4 mode Intel® Z590 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. *When M.2_4 is operating in SATA device, SATA6G_2 will be disabled. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| Wireless & Bluetooth | 2×2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 |
| USB | Rear USB: Total 10 ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A) Front USB: Total 7 ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Audio Features- SupremeFX Shielding Technology – ALC4080 + Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium Japanese audio capacitors – Audio cover |

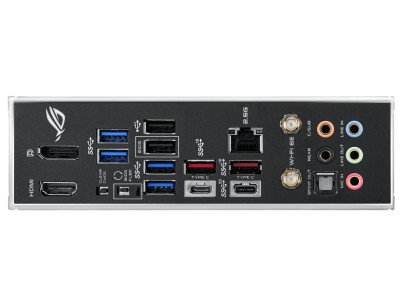

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C® ) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI™ port 1 x DisplayPort 1 x Intel® Wi-Fi 6E 1 x Intel® I225-V 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x VRM heatsink Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |
| Software Features | ROG Exclusive Software- RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS® Sound Unbound – Overwolf – Anti-virus software – AIDA64 Extreme (60 days free trial) ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Two-Way AI Noise Cancelation AI Suite 3 – 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app – EZ update DAEMON Tools MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

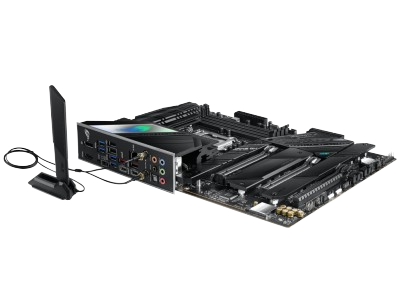

| Accessories | Cables4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Fan holder Miscellaneous 1 x ASUS 2×2 Dual-Band Wi-Fi moving antennas 1 x M.2 Q-Latch package 2 x M.2 Rubber Packages 1 x ROG key chain 1 x cable tie 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Installation Media 1 x Support DVD Documentation 1 x User manual |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX 30.5cm x 24.4cm |
| Warranty | 3 Years |
