Asus
ASUS ROG STRIX B550-F GAMING
₹19,520.10
In Stock
Product Attributes
| Motherboard Chipset Id | 4 |
| Socket Id | 2 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 3 |
| Wifi | N |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 2 |
| Nvme Gen 3 | 1 |
| Nvme Gen 4 | 1 |
| Nvme Gen 5 | 0 |
| Brand | Asus |
Description
ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming gives you a head start on your dream build.
Technical Specifications
| CPU | AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors |
| Chipset | AMD B550 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4133(O.C.)/4000(O.C.)/ 3866(O.C.)/3600(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory OptiMem II 3rd Gen AMD Ryzen™ Processors Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| Graphic | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types. Integrated Graphics Processor |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) * 3 x PCIe 3.0 x1 1 x PCIe 3.0 x16 (x16 mode) |
| Storage | 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| LAN | ntel® I225-V 2.5Gb Ethernet ASUS LANGuard |
| Audio | Audio Shielding – Premium Japanese audio capacitors – Audio Cover – Optical S/PDIF in port(s) at back panel ROG SupremeFX8-Channel High Definition Audio CODEC S1220A – SupremeFX Shielding™ Technology – Dual OP Amplifiers – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality120dBSNR stereo playback outputand113dBSNR recording input – Supports up to 32-Bit/192kHz playback * – Gold-plated jacks * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. Audio Feature : |
| USB Ports | Front USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) 4 x USB 2.0 port(s) |
| Software Features | ROG Exclusive Software – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS® Sound Unbound – Overwolf – Anti-virus software ASUS Exclusive Software Features Armoury Crate – Aura Creator – Aura Sync – AI Noise Cancelling Microphone AI Suite 3: – PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO – EZ update WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | Aura Sync – Standard RGB header(s) – Addressable Gen 2 RGB header(s) ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield – SafeSlot |

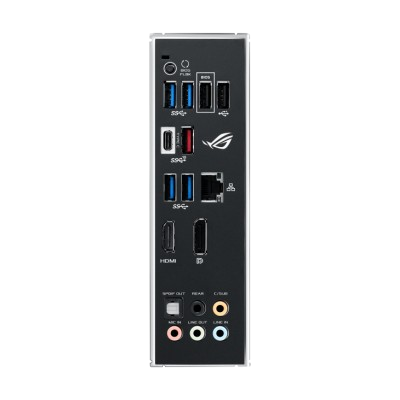

| Back I/O Ports | 1 x BIOS FlashBack™ Button(s) 4 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 1 x Intel® I225-V 2.5Gb Ethernet ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) 1 x DisplayPort 1 x Optical S/PDIF out 5 x Gold-plated audio jacks 1 x HDMI 2 x USB 2.0 Internal I/O Ports 1 x M.2 Socket 1 with M key |
| Internal I/O Ports | 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x Thunderbolt header(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Addressable Gen 2 header(s) |

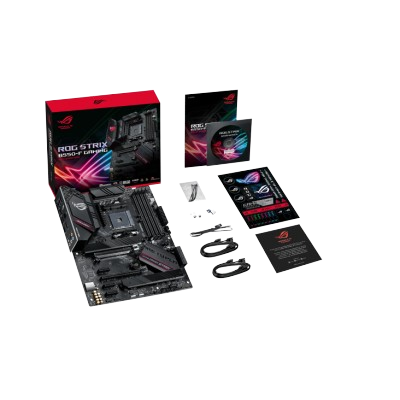

| Accessories | 1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s) 4 x SATA 6Gb/s cable(s) 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x ROG Thank you card User´s manual 1 x Supporting DVD 1 x Extension cable for Addressable LED |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) ATX Form Factor |
| Warranty | 3 Years |
