Asus

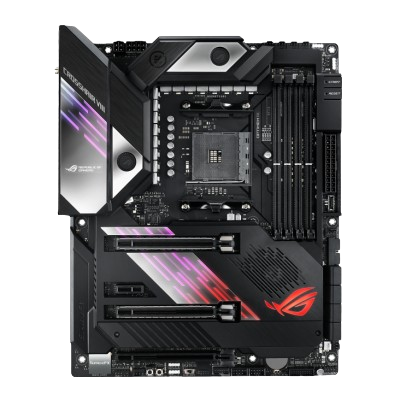

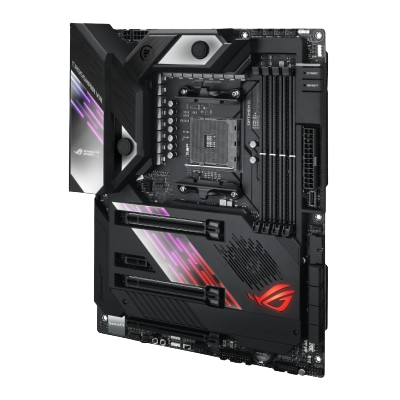

Asus ROG Crosshair VIII Formula
₹58,799.50
In Stock
Product Attributes
| Motherboard Chipset Id | 5 |
| Socket Id | 2 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 3 |
| Wifi | Y |
| Pci Express | No |
| Ram Slots | 4 |
| Total Nvme Slots | 15 |
| Nvme Gen 3 | 0 |
| Nvme Gen 4 | 2 |
| Nvme Gen 5 | 0 |
| Brand | Asus |
Description
AMD X570 ATX gaming motherboard with PCIe 4.0, 16 power stages , OptiMem III, on-board Wi-Fi 6 (802.11ax), 5 Gbps LAN, USB 3.2, SATA, M.2, ASUS NODE and Aura Sync RGB lighting
Technical Specifications
| CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| Chipset | AMD X570 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.) /3600(O.C.)/3466(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Memory 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory 3rd Gen AMD Ryzen™ Processors 2nd Gen AMD Ryzen™ Processors 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory |
| Multi-GPU Support | 3rd and 2nd Gen AMD Ryzen™ Processors Supports AMD 3-Way CrossFireX™ Technology Supports AMD 2-Way CrossFireX™ Technology Supports NVIDIA® 2-Way SLI® Technology |
| Expansion Slots | 2 x PCIe 4.0 x16 (x16 or dual x8) 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset |
| Storage | 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s), 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support Support Raid 0, 1, 10 |
| LAN | Intel® I211-AT Aquantia AQC111C 5G LAN ROG GameFirst V Technology ASUS LAN Guard |

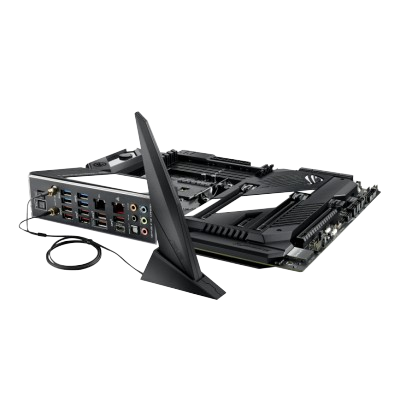

| Wireless Data Network | Intel® Wi-Fi 6 AX200 Up to 2.4Gbps transfer speed Supports channel bandwidth: HT20/HT40/HT80/HT160 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz |
| Bluetooth | Bluetooth® 5.0 |
| Audio | ROG SupremeFX8-Channel High Definition Audio CODEC S1220 – Supports : Multi-streaming, Front Panel Jack-retasking – High quality120dBSNR stereo playback outputand113dBSNR recording input – SupremeFX Shielding Technology – ESS® ES9023P – Supports up to 32-Bit/192kHz playback * – Gold-plated jacks – Optical S/PDIF out port(s) at back panel – Sonic Radar III – Sonic Studio III + Sonic Studio Link * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. Audio Feature : |
| USB Ports | 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, Type-A) 4 x USB 3.2 Gen 1 port(s) (4 at back panel, red, Type-A) 1 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 2 port(s) (3 at back panel, red, Type-A, 1 x Type-C) 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board) 4 x USB 2.0 port(s) 3rd Gen AMD RyzenTM Processors : 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : AMD X570 chipset : |
| ROG Exclusive Features | USB BIOS FlashBack™ ROG RGB Armor Start Button Reset Button ROG Aura Extreme Engine Digi+ : – IR3555 PoweIRstage® – MicroFine Alloy Chokes – 10K Black Metallic Capacitors ROG Extreme OC kit : – Safe Boot button – Slow Mode – LN2 Mode UEFI BIOS features : – Tweakers´ Paradise – ROG SSD Secure Erase – Graphic Card Information Preview Crosschill EK III ROG Patented Pre-mounted I/O Shield ROG Exclusive Software – Mem Tweakit – RAMCache III – RAMDisk – CPU-Z – GameFirst V – Overwolf |
| Special Features | – USB BIOS FlashBack™ – BIOS FlashBack™ Button ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer´s Guardian: – DRAM Overcurrent Protection – ESD Guards on LAN, Audio,and USB ports ASUS SafeSlot – Protect your graphics card Investment LiveDash OLED AURA : – Aura Lighting Control – Aura RGB Strip Headers – Addressable Gen 2 Header ASUS Exclusive Features : – AI Suite 3 – Ai Charger – ASUS CrashFree BIOS 3 – Armoury Crate – Pre-mounted I/O Shield – ASUS NODE: hardware control interface – Clear CMOS Button ASUS Q-Design : – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) – ASUS Q-DIMM – ASUS Q-Connector |

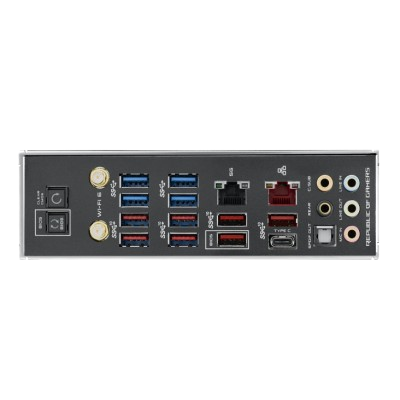

| Back I/O Ports | 1 x USB BIOS FlashBack™ Button(s) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x ASUS Wi-Fi Module 1 x Gold-plated audio jacks 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports () Anti-surge LAN (RJ45) port 1 x AQC-111C 5G LAN port |
| Internal I/O Ports | 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports 1 x PCH_FAN 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support(SATA mode & PCIE mode) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x Optional Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x LN2 Mode header(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Node Connector(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Speaker connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x USB 3.2 Gen 2 (up to 10Gbps) connector |
| Accessories | 1 x ROG logo plate sticker 4 x SATA power cable 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x ROG coaster(s) 2 x ROG weave SATA 6G cable 1 x ROG Thank you card User´s manual 1 x M.2 Screw Package 1 x Supporting DVD 1 x Extension cable for Addressable LED |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Manageability | WOL, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) ATX Form Factor |
| Warranty | 3 Years |
