Technical Specifications

CPU	AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
Chipset	AMD X570
Memory	AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/ 4666(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/4133(O.C.)/ 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/ 3400(O.C.)/3200/ 3000/ 2933/ 2800/ 2666/ 2400(O.C.)/ 2133 MHz Non-ECC, Un-buffered Memory AMD Ryzen™ 4000 G-Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4866(O.C)/4800(O.C.)/ 4600(O.C)/ 4400(O.C)/4266(O.C.)/ 4133(O.C.)/4000(O.C.) /3866(O.C.)/3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory AMD RyzenTM 2000 Series Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory AMD RyzenTM 3000 G-Series / 2000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Multi-GPU Support	AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors> AMD Ryzen™ 3000 G-Series/ 2000 G-Series Desktop Processors Supports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology Supports AMD 2-Way CrossFireX™ Technology
Expansion Slots	AMD RyzenTM 4000 G-Series / 2000 Series Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset
Storage	AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s), 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support Support Raid 0, 1, 10
LAN	ASUS LANGuard Intel® I211-AT Realtek® RTL8125-CG 2.5G LAN
Wireless Data Network	Supports PCIe interface 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Intel® Wi-Fi 6 AX200 Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports dual band frequency 2.4/5 GHz
Bluetooth	Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio	ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback – Dedicated audio PCB layers – Unique de-pop circuit – Audio Cover – Premium Japanese audio capacitors – Power pre-regulator: Reduces power input noise to ensure consistent performance – SupremeFX Shielding™ Technology – Impedance sense for front and rear headphone outputs – High quality120dBSNR stereo playback outputand113dBSNR recording input – ESS® ES9023P – Supports up to 32-Bit/192kHz playback – Gold-plated jacks – Optical S/PDIF out port(s) at back panel * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. Audio Feature :
USB Ports	AMD Ryzen™5000 Series / 4000 G-Series/ 3000 Series Processors : AMD Ryzen™3000 G-Series / 2000 Series / 2000 G-Series Processors : 4 x USB 3.2 Gen 2 port(s) 4 x USB 3.2 Gen 1 port(s) 1 x USB 3.2 Gen 2 front panel connector port(s) 6 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) AMD X570 chipset :
Special Features	– ASUS USB BIOS FlashBack™ AURA : – Aura RGB Strip Headers – Addressable Gen 2 Header ASUS EZ DIY : ASUS Q-Design : – ASUS Q-Code – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) – ASUS Q-Slot – ASUS Q-DIMM – ASUS Q-Connector

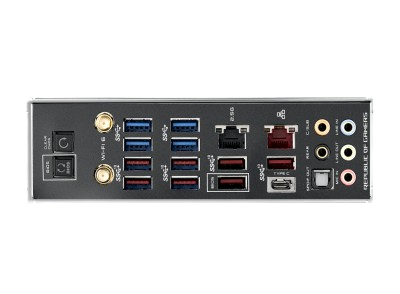

Back I/O Ports	1 x BIOS FlashBack™ Button(s) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x Anti-surge 2.5G LAN (RJ45) port 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports () Anti-surge LAN (RJ45) port
Internal I/O Ports	2 x M.2 Socket 3 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Node Connector(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x T_Sensor Connector 1 x Start button 1 x Speaker connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports 2 x Aura RGB Strip Headers
Accessories	1 x M.2 SSD screw package(s) 4 x SATA 6Gb/s cable(s) 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x ROG coaster(s) 1 x ROG Thank you card User´s manual 1 x Supporting DVD 1 x Extension cable for Addressable LED
BIOS	256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Manageability	WOL, PXE
Operating System	Windows® 10 64-bit
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) ATX Form Factor
Warranty	3 Years

Motherboard Chipset Id	5
Socket Id	2
Ram Type Id	1
Motherboard Factors Id	3
Wifi	Y
Pci Express	No
Ram Slots	4
Total Nvme Slots	14
Nvme Gen 3	0
Nvme Gen 4	2
Nvme Gen 5	0
Brand	Asus

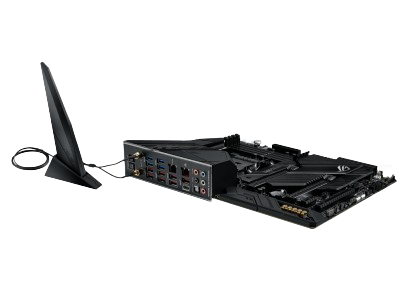

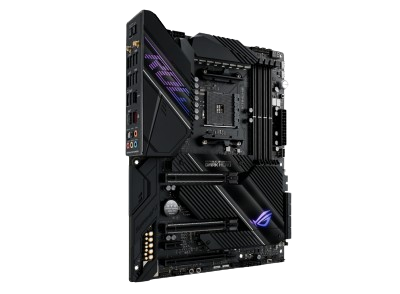

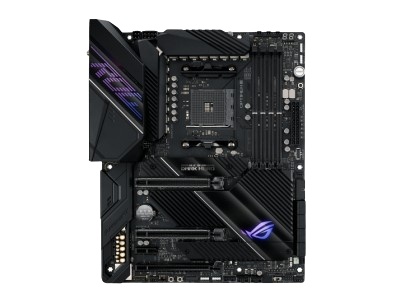

Asus ROG Crosshair VIII Dark Hero
