Asus

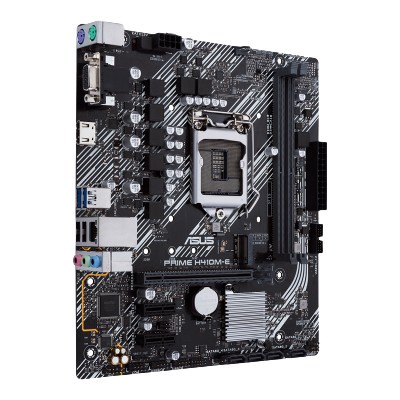

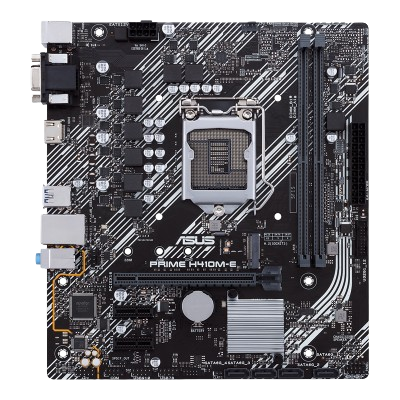

ASUS PRIME H410 M-E
₹6,440.00
In Stock
Product Attributes
| Motherboard Chipset Id | 19 |
| Socket Id | 4 |
| Ram Type Id | 1 |
| Motherboard Factors Id | 2 |
| Wifi | N |
| Pci Express | No |
| Ram Slots | 2 |
| Total Nvme Slots | 1 |
| Nvme Gen 3 | 1 |
| Nvme Gen 4 | 0 |
| Nvme Gen 5 | 0 |
| Brand | Asus |
Description
Intel® H410 (LGA 1200) mic-ATX motherboard with M.2 support, DDR4 2933MHz, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header
Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
5X Protection III: Multiple hardware safeguards for all-round protection
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
Ultrafast connectivity: M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
Technical Specifications
| CPU | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Intel® H410 |
| Memory | 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor * 1 x D-Sub 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. |
| Expansion Slots | Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® H410 Chipset 2 x PCIe 3.0 x1 |
| Storage | Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1 4 x SATA 6Gb/s port(s) |
| LAN | Realtek® RTL8111H |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC *2 – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – LED-illuminated design – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors |
| USB Ports | Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert – EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X PROTECTION III – ASUS DIGI+ VRM – ASUS LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot Core – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-Slot ASUS Thermal Solution – Aluminum heatsink design |

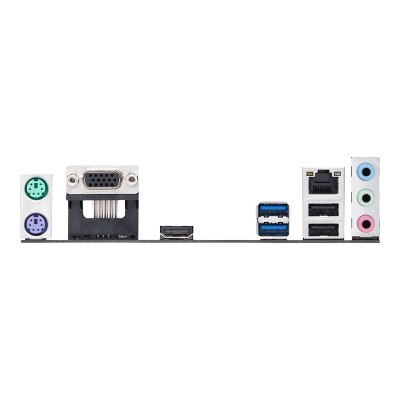

| Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |

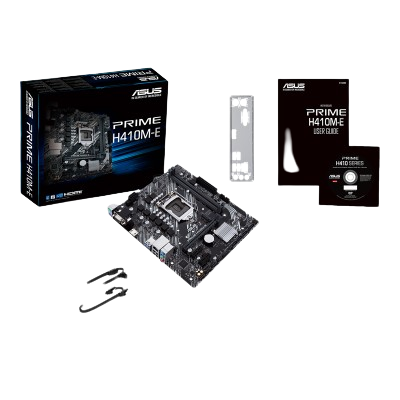

| Accessories | I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Anchor 1 x Supporting DVD User manual |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) |
| Warranty | 3 Years |
