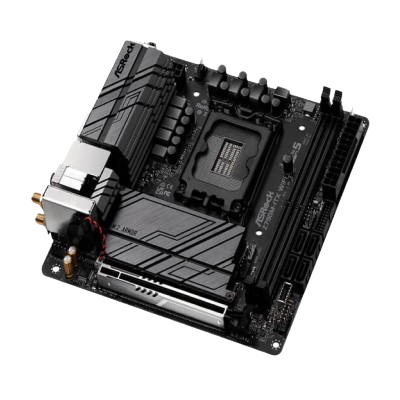

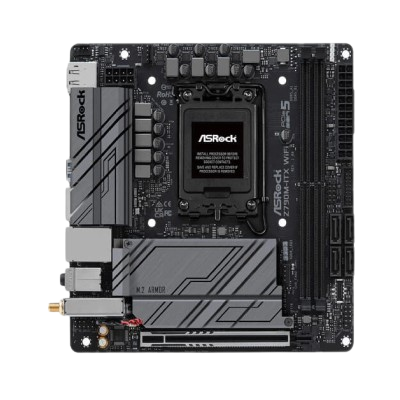

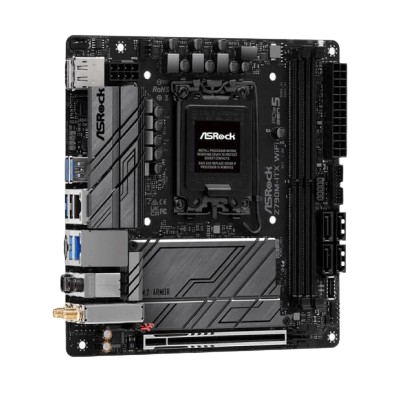

ASRock Z790M-ITX WIFI Motherboard
₹29,911.50
In Stock
Product Attributes
| Motherboard Chipset Id | 16 |
| Socket Id | 6 |
| Ram Type Id | 3 |
| Motherboard Factors Id | 5 |
| Wifi | Y |
| Pci Express | No |
| Ram Slots | 2 |
| Total Nvme Slots | 2 |
| Nvme Gen 3 | 0 |
| Nvme Gen 4 | 2 |
| Nvme Gen 5 | 0 |
| Brand | ASRock |
Description
Asrock Z790M ITX DDR5 WiFi motherboard has Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps.
Features:
Supports 14th, 13th & 12th Gen Intel® Core™ Processors
7+1+1 Phase Power Design, Dr.MOS for VCore+GT
2 x DDR5 DIMMs, supports up to 7000+(OC)
1 PCIe 5.0 x16
Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3
1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 3 USB 2.0 (1 Rear, 2 Front)
Intel® 2.5G LAN, Intel® 1G LAN
802.11ax Wi-Fi 6E + Bluetooth 5.3
Technical Specifications
| MODEL NUMBER | ASRock Z790M-ITX WIFI Motherboard |
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphic) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - ASRock Auto Driver Installer |
| CPU | - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) |
| Chipset | - Intel® Z790 |
| Memory | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)* - Max. capacity of system memory: 96GB - Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and m |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V) - 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) |
| Wireless LAN | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 + High speed class II - Supports MU-M |
| Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| USB | - 1 x USB 3.2 Gen2x2 Type-C (Rear) - 1 x USB 3.2 Gen2x2 Type-C (Front) - 4 x USB 3.2 Gen2 Type-A (Rear) - 2 x USB 3.2 Gen1 (Front) - 3 x USB 2.0 (1 Rear, 2 Front) |
| Connector | - 1 x eDP Signal Connector - 1 x RGB LED Header - 1 x Addressable LED Header - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 2 x Chassis Fan Connectors (4-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Den |

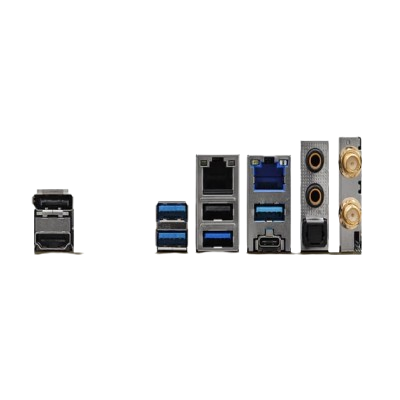

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 1 x USB 2.0 Port - 2 x RJ-45 LAN Ports - 1 x Line Out Jack (Gold Audio Jack) - 1 |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
| Accessories | - 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 2 x Screws for M.2 Sockets |
| Form Factor | - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - 8 Layer PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
