Antec

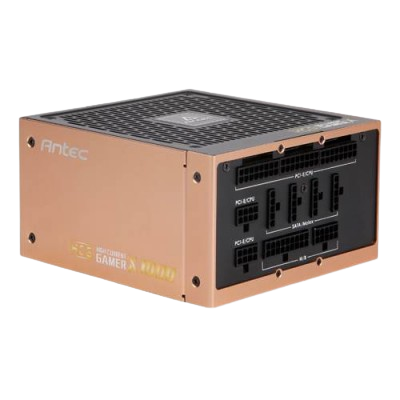

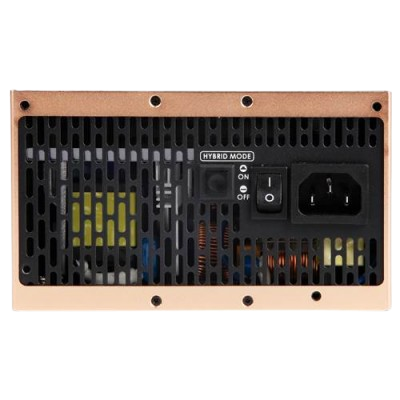

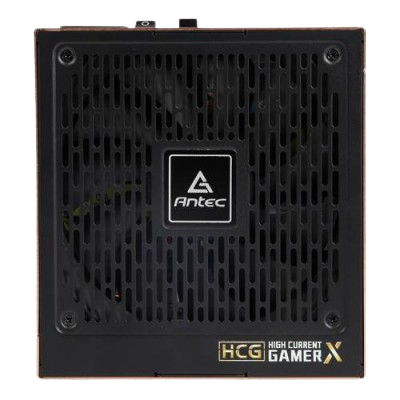

Antec HCG X1000 EXTREME 80 Plus Gold Fully Modular
₹16,032.15
In Stock
Product Attributes
| Smps Wattage Id | 5 |
| Smps Type Id | 2 |
| Color Id | 4 |
| Smps Modular | fully_modular |
| Brand | Antec |
Description
Engineered to meet the power demands of high-end systems, the Antec High Current Gamer Gold power supply series boasts unparalleled stability and 80 PLUS® Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC. Advanced thermal control with the Zero RPM mode enables optimal balance between silence and cooling, and a quiet 135 mm fluid dynamic bearing fan completes the package. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable. If loads of power, high-level engineering and extreme efficiency are what you’re after, the HCG Gold series is the ideal power supply in any situation.
Technical Specifications
| Product Name | HCG1000 Extreme |
| Model Name | HCG1000 Extreme |
| Type | ATX 12V 2.4 |
| Modular | Fully Modular |
| Dimension (W x L x H) | 160(L) x 150(W) x 86(H) |
| Warranty | 10 years |
| Input Voltage | 100-240 VAC ±10% |
| Input Current | 13A-6.5A |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC (>0.9 typical) |
| Power Good Signal | 100-500ms |
| Efficiency | 92% Typically |
| Protection | OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO |
| Output Capacity | 1000W |
| Operation Temperature | 0~50°C |
| Regulatory | cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC/KR |
| Fan | 135mm FDB Fan |
| Certifications | 80 Plus Gold |
| Connector pin | 1 x MB 24(20+4) Pin |
| Connector eps | 2 x 8(4+4) Pin EPS 12V |
| Connector pci | 8 x 8(6+2) Pin PCI-E |
| Connector sata | 12 x SATA |
| Connector molex | 6 x Molex |
| Connector fdd | 1 x FDD |
| Net Weight | 1.66 Kgs |
| Gross Weight | 3.40 Kgs |
| UPC# | 0-761345-11563-6 HCG1000 Extreme 0-761345-11562-9 HCG1000 Extreme CN 0-761345-11561-2 HCG1000 Extreme AU 0-761345-11560-5 HCG1000 Extreme EC 0-761345-11559-9 HCG1000 Extreme GB 0-761345-11558-2 HCG1000 Extreme JP |
