Ant Esports

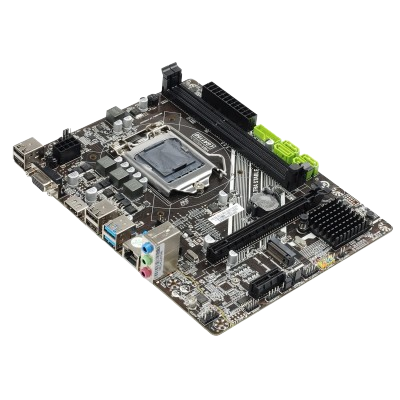

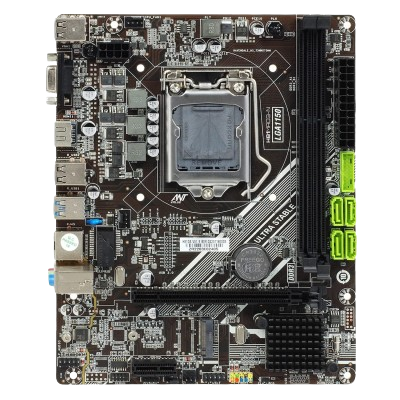

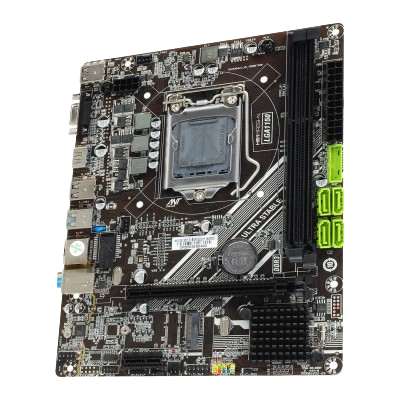

Ant Esports H81MAD3-N
₹3,967.50
In Stock
Product Attributes
| Motherboard Chipset Id | 25 |
| Socket Id | 13 |
| Ram Type Id | 4 |
| Motherboard Factors Id | 2 |
| Wifi | N |
| Pci Express | No |
| Ram Slots | 2 |
| Total Nvme Slots | 0 |
| Nvme Gen 3 | 0 |
| Nvme Gen 4 | 0 |
| Nvme Gen 5 | 0 |
| Brand | Ant Esports |
Description
ANT VALUE H81MAD3
Intel® H81 Chipset -Support Intel 4th generation Corei3 / i5 / i7 Series processors in LGA1150 Socket .
Support 2 DDR3 1600/1333 SDRAM
4 * SATA III 6Gb / s Ports
1 PCI Express x16 slot
4 * USB3.0 Ports ( 2 at back panel , 1 USB 3.0 Pinheader for 2 USB 3.0 )
6 * USB2. 0 Ports ( 4 at back panel , 1 USB 2.0 Pinheader for 2 USB 2.0 )
Provide Mic In , Line In , Line Out
Onboard Realtek® 10 / 100Mbps LAN ( 1000M Optional )
Technical Specifications
| Model | H81MAD3-N |
| CPU Spports | Supports Intel Corei3/i5/i7 Series Processors in LGA1150 Socket Support Intel 4th gen multi-core processors |
| Chipset | Intel H81 |
| CPU Socket | LGA-1150 |
| Expansion Slots | 1 x PCI-E x 16 slot |

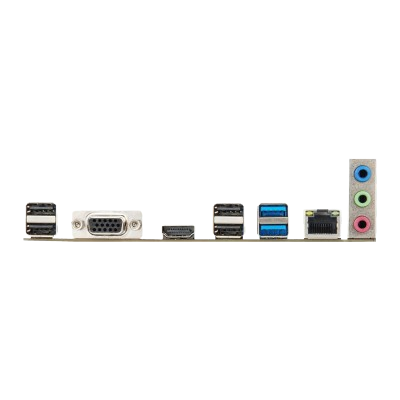

| Display Interface | 1 x VGA Port + 1 x HDMI Port |
| Memory Support | 2 x DDR3 1066/1333Mhz |
| Storage | 1 x M.2 SSD Slots, 4 x SATA III 6Gb/s Ports |
| USB Ports | 4 x USB 3.0 Ports 6 x USB 2.0 Ports |
| LAN | Realtek 10/100 Mbps LAN |
| Audio | Realtek 662 Flexible 6-Channel |
| Warranty | 2 Years |
